| Categories | Industrial Vibrating Screen |
|---|---|
| Brand Name: | TECHANG |
| Model Number: | TS |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Delivery Time: | 20 working days |
| Packaging Details: | Wooden case |
| Name: | Horizontal Coal Dewatering Industrial Vibrating Screen Sieve |
| Motor: | Two Vibration Motor |
| Screening mesh material: | Carbon Steel/ Polyurethane |
| Input size: | ≤10 mm |
| Frequency: | 50 HZ / 60 HZ |
| Capacity: | 10~180 T/H |
| Layer(s): | 1~3 layer |
| Screening mesh area: | 1.62~11.52 m2 |
| Customized: | Acceptable |
Horizontal Coal Dewatering Industrial Vibrating Screen Sieve is the machine used to screen different size of ore materials of high moisture, which is well suited for coal washing.
Working principle
Horizontal Coal Dewatering Industrial Vibrating Screen Sieve is the
machine used to screen different size of ore materials of high
moisture, which is well suited for coal washing.
The following table shows the detailed data of Horizontal Coal Dewatering Industrial Vibrating Screen Sieve for your reference.
| Model | Screening mesh area | Power | Capacity | Input size | Dimension size |
| m2 | kw | t/h | mm | mm | |
| TS0918 | 1.62 | 0.75×2 | 10~20 | ≤10 | 1885*1290*1024 |
| TS0924 | 2.16 | 0.75×2 | 10~20 | 2485*1290*1224 | |
| TS1224 | 2.88 | 1.5×2 | 30~50 | 2458*1590*1324 | |
| TS1230 | 3.6 | 2.2×2 | 30~50 | 3085*1590*2424 | |
| TS1236 | 4.32 | 2.2×2 | 30~50 | 3685*1590*1524 | |
| TS1530 | 4.5 | 3×2 | 50~80 | 3083*1890*1421 | |
| TS1536 | 5.4 | 3×2 | 50~80 | 3683*1890*1601 | |
| TS1836 | 6.48 | 4×2 | 100~150 | 3715*2466*1855 | |
| TS1842 | 7.56 | 4×2 | 100~150 | 4315*2466*2044 | |
| TS1848 | 8.64 | 5.5×2 | 100~150 | 4915*2466*2244 | |
| TS2442 | 10.08 | 7.5×2 | 130~180 | 4315*3085*2042 | |
| TS2448 | 11.52 | 7.5×2 | 130~180 | 4915*3085*2242 |

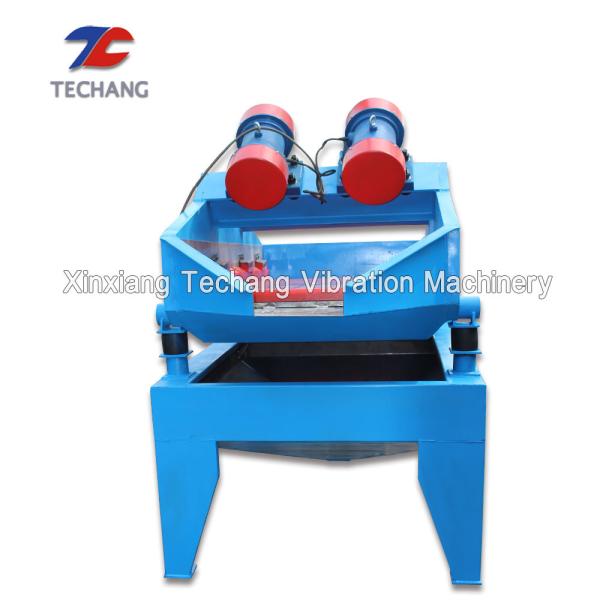

There are some pictures of Horizontal Coal Dewatering Industrial Vibrating Screen Sieve for your reference.
Q: What information do I need to provide for getting an accurate quotation for Horizontal Coal Dewatering Industrial Vibrating Screen Sieve?
A: 1. The mesh structure (establishment, punching, slitting), mesh
size
2. Processing capacity
3. Input size.
Q: How long for the delivery time?
A: 5-10 working days for conventional products.
Q: How long for warranty time?
A: 12 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.
Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.
|
