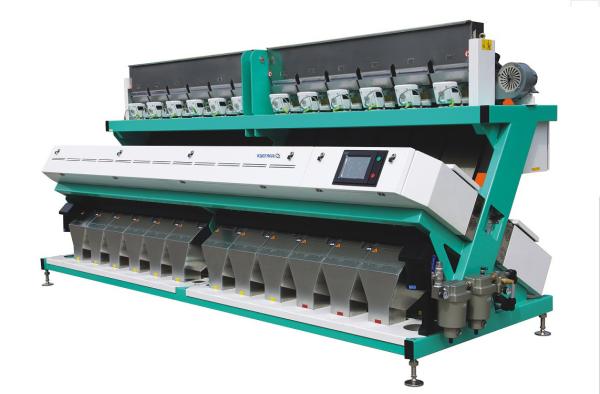

High Resolution Rice Color Sorting Machine 12 Chute Unique Colour Sorter

High Resolution Rice Color Sorting Machine 12 Chute Unique Colour Sorter

Quick Detail:

Description:

Technical characteristics

1,Unique-in-the-industry light different color selection mode is efficient for the high-end color selection of light beige, speckled or darkened rice. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good) Under this mode, the signal separation of belly-white and shallow yellow would be accomplished, selecting the yellow without any white, as is a pioneering technology in the industry.

2,Under the different-color mode, color-selection requirements of all kinds of grain can be achieved. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good)

3,Under the belly-white mode, color selection will be further optimized. For the belly-white, the first-time output compounding rate is above 1:1; and the second-time over 25:1. For full-white or full-yellow, the first-time output compounding rate is also above 1:1; and the second-time more than 30:1.

4,Newly-optimized operating interface is quite user-friendly. The “one-button auto” and “project back-up” functions help to reset the original parameters when misconduct happens.

5,Image Acquisition System,International cutting-edge industry special 5088 full-color high-speed line scan imaging sensor CCD,and special color sorting cameras tailored by top international suppliers, can precisely identify subtle spots of 0.04mm2, and meet high-end color sorting requirements of synchronous sorting and independent sorting for belly-white and core-white.

6,Light Source,Innovative smart LED shadowless cold light system design can efficiently find out small spots, light yellow, belly-white, core-white, black pin-points, which makes identification and judgment much easier, sorting more accurate. The light source has long service life, high luminous efficiency and strong anti-interference stability, and no warm-up is needed.

7,Image processing system,The rice small lesion, shallow yellow, white belly, white core, needle point such as black Leis, grain, aiming at provide more flexible separation combination scheme in the multiple modes of complex intelligent algorithm, color sorting accuracy higher, ratio of lower.

8,discharging system,For domestic and foreign customers have different needs, hopper is "the Big Dipper", and each independent "hopper" two options, a large bucket can be convenient installation, Little Dipper can according to the customer color selected requirements changed to "three color selection models

9,Feedingsystem,Original intelligent anti cover feeding system, intelligent recognition has no material, ensure to keep the feeding rate and the number of uniform. Dust-proof, anti wet, shockproof, anti slip material and maintenance requirements low.

10,Design of ultra wide channel number,The world's first super channel number design, super capacity, ultra large output, to adapt to the production line flow 10~22 tons and above.

11,Cloud object link system,Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.

Applications:

Sorting effect

The machine can separate the raw material to qualified and reject.

Specifications:

Sortdek Vision Technology Co.,Ltd. is one of leading manufacturer of color sorter industry with professional R&D team and advanced technology.

Hefei Sortdek Vision Technology Co., Ltd., is located in Hefei, Anhui Province, a great city by the lake and highland of innovation. The technical team is the elite from USTC and CAS who have rich experience in the field of photoelectric testing.

Sortdek also have a number of experts and subject leaders who enjoy the special allowance of the state council, have already built a number of optical and visual inspection technology research and development platform to provide the technology support.

At the same time, Sortdek is committed to artificial intelligence, high-end intelligent sorting equipment, food testing and other fields of future technology research and development and product services, developing intelligent equipment suitable for modern production, implanting internet cloud technology, making products more digital and intelligent, easy to seamlessly dock with modern production lines, and covering the fields of rice, grains, tea, and industrial products like fasteners, magnet, sealing rings and other industrial fields.

Sortdek adhere to customer-centric, to provide customers with a full range of digital solutions and cost-effective visual inspection system, to maximize core competitiveness of products and commercial value for each enterprise. Sortdek is always in response to Made in China 2025, to achieve industrial cooperation and win-win situation.
