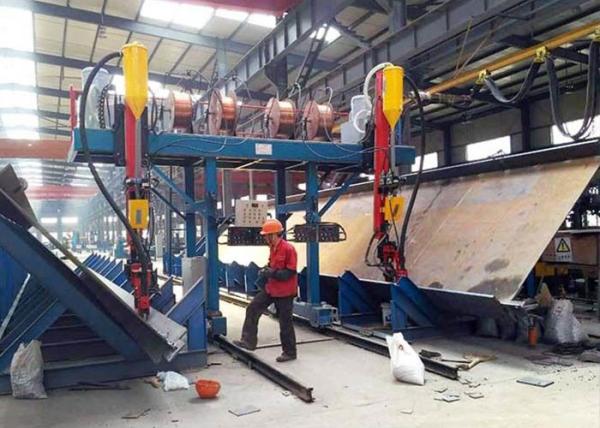

Gantry Cantilever H Beam Welding Line Flange Width CNC Cutting Easy Install

CNC Cutting Gantry Cantilever H Beam Welding Line Flange Width

YBT Machinery produces fully automatic steel profile welding and production machine--New H Beam Welding Line Fully Automatic. Professional and effecient equipments to help you in H beam, pipe-flange, pipe-elbow and etc. Welding and fabrication.The auto-welding machine for H-type steel accepts the AC frequency conveyor to control speed with the merits of stable and reliable running and quick returning.

It use the auto-arc tracing & centering device to ensure the welding gun being auto and correct centering to the target workpiece. Meanwhile, it is equipped by the auto welding flux feed and recovery system, easy operating and high efficiency. And the column-beam welding machine can increase the height of web according to the need of the users.

Main Features:

• Equipment structure types:Machinery stationary, workpiece automatic through;
• Applicable workpiece specifications:Web height:200-2000MM;
• Flange width:200-800MM;Length:4000-15000MM;
• Clamping way:Web and flange automatic clamping;
• Hydraulic system:With the pressure keep and time delay;
• Main drive control:AC motor + cycloidal reducer;
• Adopt imported technology of frequency converter to AC frequency convertor centralizes and locates the web and flange, and realize CO2 gas shield welding or manual welding is optional for user.

Description of H Beam Welding Line

(1)Host machine:Including Main drive roller bearing power components, the door frame device, clamping device of web, wing powder compact device, hydraulic alignment device, etc.

Main drive roller moving roller components:The motor drives the cycloidal pinwheel reducer, and then through the sprocket, chain transmission, drive the main drive roller rotation (attached drive roller 2 group), making walking hbeam.

(2)the pull rodof the system:On the bar system mainly includes:Pull rod box, rod oil cylinder, pull rod.When not set of wing, web transmission into the machine, the wings, not in the required position precision, web and web need support at this time.Rod for the system is able to wing, web preliminary positioning and its process are respectively, by the surface tension in the oil cylinder and the web of the tensioning oil cylinder control.Pull rod box by pull rod connected between each other.

(3)Input roller:Input of raceway is mainly with the input process of hbeam, it consists of, passive and active raceway groove, the arrangement and the spacing between rolling suitcase.

(4)Output roller:Output of raceway is mainly with the output process of hbeam, it consists of, passive and active raceway groove

(5)Hydraulic system assembly:Hydraulic system mainly includes:Hydraulic pump station, the main pressure cylinder, wing plate positioning cylinder, web positioning cylinder, wing powder tight oil cylinder (3pcs), web clamping cylinder (2pcs), rubber hose, oil pipe, seamless steel pipe.

Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

After-sale service

1 . The warranty of roof batten roll forming machineis one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2 . We offer technical support for the entire life of our machines.We can send our technicians to install and train the workers in the clients' factories with extra cost.

3 .Terms of trade of ceiling batten machine : a. Minimum order quantity (MOQ): 1 piece b.Delivery time: about 45 workdays c.Port of loading: port of Shanghai

Wuxi YBT machinery Equipment co.,ltd established in 1998, specialize in cold roll forming machine and auto-producing line.To put customers'benefit on the first, we know our success comes from customers'success and support. We run this mind through the whole process from the design and develpment to after-sale service in order to help our customer increase efficiency and reduce cost to strengthen competitive forces. Our designer and sales will listen to your reuirement to help you receive an ideal equipment.Our company has perfect internte for after-sale service which can support the after-sales so that you can get the satisfied equipment, ensure you receive our considerate service by solving all the problems which appeared during using the machine.
We will do the best machine to my all customers!
