35 - 65 Mm Bottle Height Bottled Water Filling And Capping Machine Inhaler Aerosol Filling Machine

Categories Bottle Filling Capping And Labeling Machine
Brand Name: HIGEE
Model Number: HG-8
Certification: ISO 9001 ,CE ,
Place of Origin: China
MOQ: 1 set
Price: negociated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Delivery Time: 45 days
Packaging Details: Wood case for aerosol filling machine
Name: inhaler aerosol filling machine
Model: HG-8
Speed: 1800-3600 bph
Liquid filling volume: 30-750 ml
Inflaction filling volume: 30-750 ml
Bottle type: Aerosol cans , spray cans
Bottle height: 35-65 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

35 - 65 Mm Bottle Height Bottled Water Filling And Capping Machine Inhaler Aerosol Filling Machine

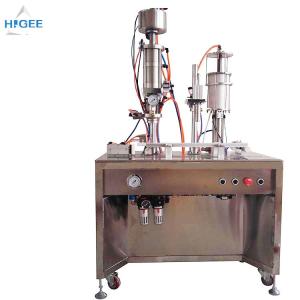

Full automatic bag on valve spray can filling machine

This machine is specially designed for bag on vavle aerosol products filling, it is PLC controlled and pneumatic operated.It is consisted of two parts, there are two heads seated on the working table, the first head combines the function of vacuumizing, prppellant filling and criimping, the second head is liquid filling head which push the liquid material into bag through the valve.

Through liquid filling machine, raw material will be filled into the inside bag of the can ,and entirely separate from can body, so the liquid material is insolated into bag and will not touch propellant.

This machine is smart and eay to operate, when no can under the nozzle it will not work. This machine take up small space and high-efficiency which is widely used for pharmaceutical, food, cosmetic and other bag on valve products manufacturing.


Technical parameters :


NameAerosol filling machine
Production capacity:500-1000cans/hr
Max Liquid volume(ml):20-750ml(customized)
Max Gas volume(ml):20-750ml(customized)
Sealing accuracyOver 99%
Working Pressure:0.65-1.0Mpa
Maximum air consumption:0.8m3/min
Applicable can diameter:35-65 (mm)
Applicable aerosol can height:80-350(mm)
Packing size1000*600*1680mm 150kg
Available valve:1 inch (25.4mm) /20mm

BOV Cans

Other aerosol spray production samples :


skin applications


Other kind of aerosol production samples

air or oxygen cans.png


Chemicals applicationscasttle valve canschemicals application 1.jpgcars application.jpg
