Building Material Corrugated Steel Panel Roll Forming Machine Roller Diameter 80MM

Categories Corrugated Sheet Roll Forming Machine
Brand Name: shitong
Model Number: C988
Certification: CE/ISO9001
Place of Origin: CHINA
MOQ: 1 set
Price: 7500$
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Delivery Time: 30 days
Packaging Details: the main machine is nude
Power(KW): 3+3
Roller Diameter: 80MM
Cutter material: Cr12 , quenched
name: corrugated steel panel roll forming machine
warranty: 2 years
Production Capacity: 15-20m/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Building Material Corrugated Steel Panel Roll Forming Machine Roller Diameter 80MM

Factory Prices Making Building Material Wall Panel Metal Roofing Corrugated Tile Roll Forming Machine For Sale

Quick Details:

Type: Tile Forming Machine

Production Capacity: 4-4.5m/min

Power(W): 3+3kw

Certification: CE/ISO

Condition: New

Tile Type: Colored Steel

Use: Roof

Brand Name: Shitong

Voltage: 380V

Dimension(L*W*H): 7.2*1.4*1.2m

color: any you like

Chain Size: 20mm

Feeding Thickness of plate: 0.3-0.8mm

Roller Diameter: 80mm

Cutter material: Cr12 , quenched

Warranty: 12 months


Main parameters:


No.main parameter of CORRUGATED roll forming machine
1Suitable to processColor steel plate, galvanized sheet, aluminum coils and etc.
2Width of the feeding material914mm
3Roller station18 rows
4Thickness of feeding material0.3-0.6mm
5Power4+3kw
7Productivity8-12m/min
8Diameter of the rollerΦ70mm
9WeightAbout 4.5 T
10Size8500*1300*1400mm
11Voltage380V 50Hz 3phases
12Rolling materialCarbon Steel 45#
13Material of the cutting plateCr12
14Wall thickness of main forming machine16mm steel plate
15Main forming machine body300 mm H steel
16Control systemPLC control

Can be customized according to customer requirements or drawings

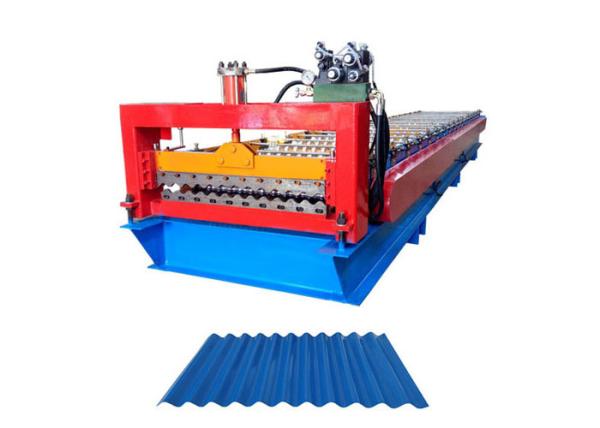

machine pictures:


China Building Material Corrugated Steel Panel Roll Forming Machine Roller Diameter 80MM factory
