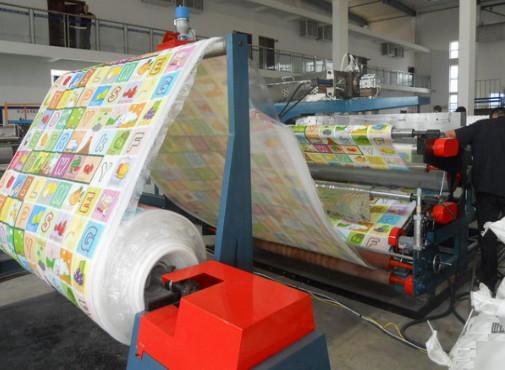

Environmental Friendly EPE Color-Film Coating Machine Non Poisonous To Human And Baby
Descriptions :
The machine can sticky more firmly and embossing pattern more clearly than normal type EPE film laminating machine. It thoroughly overcomes all the weakness of film laminating machine. The finished products are widely used as ground mats, creeping mats for babies and so on. It can coating EPE products with paper, non woven, aluminum, color-strip plastic sheet etc.
EPE crawling pad adopts the innocuous and non poisonous EPE(PE foam film) as the intermediate material. The front side is laminated by CPP or PE color film, which is using inner printing technology, the users will not touch the hazardous substance directly. The back side is laminated with PET composite aluminum film, which has the good features of temperature insulation and damage proof.
Main Technical Parameters | ||||||
Model | JC-1300 | JC-1500 | JC-1600 | JC-1800 | JC-1900 | JC-2200 |
Die width (mm) | 1380 | 1580 | 1680 | 1880 | 1980 | 2280 |
Coating width (mm) | 1300 | 1500 | 1600 | 1800 | 1900 | 2200 |
Output (kg/h) | 60 | 60 | 60 | 60-90 | 60-90 | 60-90 |
Installed power (kw) | 35 | 35 | 35 | 65 | 68 | 68 |
![]() |
