| Categories | EPS Foam Production Line |
|---|---|
| Model Number: | FW-Z-F |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Depends on different model |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 4 sets / 90 days |
| Delivery Time: | 90 days |
| Packaging Details: | Without package or wooden |
| Steam Valve: | Double |
| Demould Type: | Hydraulic |
| Demould Frame: | Shutters |
| Chamber: | Pressure Sensor |
| Type: | Foaming |
| Voltage: | Customized |
| Company Info. |
| Kasmac Industries Co., Ltd. |
| View Contact Details |
| Product List |

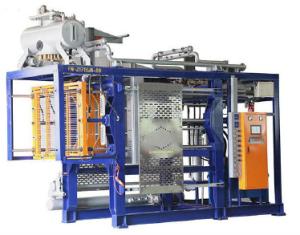

Energy Saving EPS Foam Production Line EPS Automatic Packaging Styrofoam Shape Moulding
Descriptions :
This machine features reduce pressure valve and double steam valves. Pressure sensor and high frequency solenoid valve control the mould chamber pressure. With material position rotary switch.
EPS shape moulding machine adopts mechanical de-molding. De-molding positions can be adjusted according to the thickness of product. Foam products of various specification produces by EPS shape moulding machine have low moisture content, low energy consumption and stable size. Optimizing shape enable the machine to be good characteristics to meet the production of different EPS products with more than 98% pass. Computer can memorize the technical parameters produced with different moulds that can be transferred anytime. EPS shape moulding machine can realize computerized production control and management with high automation, simple operation, easy maintenance, good working environment, and labor intensity.
| Main Technical Parameters | ||||
| Model | FW-Z1513F | FW-Z1715F | FW-Z1816F | |
| Standard mould size (mm) | 1500x1300 | 1750x1550 | 1850x1600 | |
| Rear window size (mm) | 1350x1150 | 1600x1400 | 1700x1450 | |
| Max. production size (mm) | 1330x1130 | 1580x1380 | 1680x1430 | |
| Max. thickness size (mm) | 400 | 400 | 400 | |
| Steam system | Main pipe pressure (kg/cm2) | 5~6 | 5~6 | 5~6 |
| Inlet size (mm) | DN80 | DN100 | DN100 | |
| Mould inlet | 1.5inch x 6pcs | 1.5inch x 8pcs | 1.5inch x 8pcs | |
| Control type | Angle valve | |||
| Steam valve | Double | |||
| Inlet pressure (kg/cm2) | 5~6 | 3~4 | 3~4 | |
| Consumption (kg/cycle) | 3.5~9.5 | 5~12 | 5~12 | |
| Air system | Main pipe pressure (kg/cm2) | 5~6 | 5~6 | 5~6 |
| Inlet size (mm) | DN80 x 2pcs | DN80 x 2pcs | DN80 x 2pcs | |
| Inlet pressure (kg/cm2) | 5~6 | 5~6 | 5~6 | |
| Consumption (m3/cycle) | 1.5~1.8 | 1.5~2.2 | 1.5~2.2 | |
| Cooling water system | Main pipe pressure (kg/cm2) | 3~5 | 3~5 | 3~5 |
| Inlet size (mm) | DN80 | DN80 | DN80 | |
| Mould inlet | 1inch x 6pcs | 1inch x 8pcs | 1inch x 8pcs | |
| Inlet pressure (kg/cm2) | 3~5 | 3~5 | 3~5 | |
| Consumption (kg/cycle) | 45~110 | 45~120 | 45~120 | |
| Temperature (℃) | 45~55 | 45~55 | 45~55 | |
| Vacuum system | Vacuum motor (kw) | 5.5 | 7.5 | 7.5 |
| Vacuum inlet size (mm) | DN80 | DN80 | DN80 | |
| Drainage size (mm) | DN65 | DN65 | DN65 | |
| Pipe size (mm) | DN15 | DN25 | DN25 | |
| Inlet pressure (kg/cm2) | 3~5 | 3~5 | 3~5 | |
| Consumption (kg/cycle) | 15~30 | 15~50 | 15~50 | |
| Temperature (℃) | 20~30 | 20~30 | 20~30 | |
| Drainage system | Outlet size (mm) | DN150 | DN150 | DN150 |
| Mould outlet | 1.5inch x 6pcs | 1.5inch x 8pcs | 1.5inch x 8pcs | |
| Hydraulic system | Motor (kw) | 5.5 | 7.5 | 7.5 |
| Pump (L/min) | 30+85 | 30+121 | 30+121 | |
| Max. lock pressure (T) | 22 | 36 | 36 | |
| Oil box volume (L) | 290 | 340 | 340 | |
| Moving Cylinder (mm) | φ100 x 2pcs | φ125 x 2pcs | φ125 x 2pcs | |
| Demould cylinder (mm) | φ50 x 2pcs | φ50 x 2pcs | φ50 x 2pcs | |
| Hopper system | Hopper volume (L) | 300 | 420 | 420 |
| Material position control | Material position control | |||
| Refilling blower (kw) | 1.5 | 2.2 | 2.2 | |
| Outlet (pcs) | 44 | 44 | 60 | |
| Demould system | Demould type | Hydraulic | ||
| Demould frame | Shutters | |||
| Chamber pressure control | Pressure sensor | Pressure sensor | ||
| Rod diameter (mm) | φ70 x 4pcs | φ85 x 4pcs | φ85 x 4pcs | |
| Foundation high (mm) | 1600 | 1600 | 1600 | |
| Cycle time (S/cycle) | 55~95 | 60~120 | 60~125 | |
| Connect load (kw) | 12.5 | 17.2 | 17.2 | |
| Dimension (LxWxH) (mm) | 5000x2300x3200 | 5000x2600x3400 | 5000x2700x3500 | |
| Weight (kg) | 6500 | 7500 | 80000 | |
|
