1920×1080 IP67 7" Face Recognition Temperature Monitor

Categories Inspection Tools
Brand Name: GOSPELL
Model Number: STD-5MA0721-E-J02
Certification: ISO, CE
Place of Origin: China
MOQ: 1 pc
Payment Terms: T/T, L/C
Supply Ability: 500 pcs/month
Delivery Time: 15-20 working days
Packaging Details: Carton
Screen: Color Screen
Clock: With Clock
Display Screen Size: 7"
Resolution: 1024 × 600
Protection Class: IP67 Protection Level
Power Supply: DV12 ± 30%
Weight: 1.5kg
Proportion: 9 : 16
Installation: Bracket/Wall/Gate Mounted
Recognition Distance: 0.3m-2.0m Adjustable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

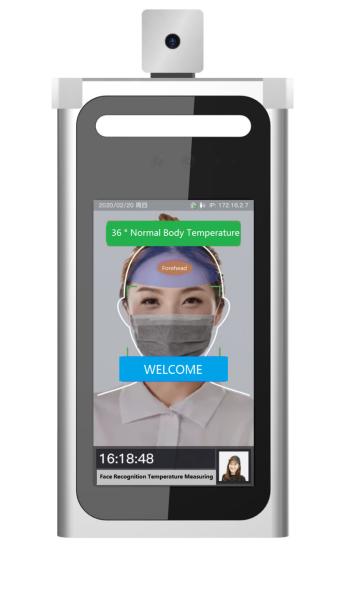

1920×1080 IP67 7" Face Recognition Temperature Monitor

Binocular Camera Security Time Attendance System Facial Recognition Terminal with Infrared thermal imaging module


Basic Information


product nameBinocular Face Recognition Temperature Measuring Terminal
Product numberSTD-5MA0721-E-J02/STD-5MA0721-E-J05
operating system

Embedded Linux system



Smart function


Detection angleVertical viewing angle: 90 degrees, horizontal viewing angle: 53 degrees
Face DetectionMaximum face detection
storage30,000 people face database, 150,000 record storage
1: N face recognitionRecognition speed ≤0.2S / person, recognition accuracy rate ≥99.99%
Stranger detectionstand by
Recognition distance0.3m-2.0m adjustable
Configuration settingsWeb-side configuration, equipment remote upgrade
Identification parameter settingsBlack and white list, detection sensitivity, comparison threshold, area arming, face frame switch
Live detectionstand by
Mask detectionSupport mask detection, automatic recognition voice reminder without mask

Camera


Resolution200W pixels (1920×1080)
sensor1 / 2.7 inch low light CMOS sensor
LensHD fixed focus 4mm & aperture F2.2
White balanceAutomatic, low color temperature, high color temperature, manual
Wide dynamicDigital WDR and True WDR
Fill lightRGB (natural light) and infrared light

Temperature measurement


Range0 ℃ ~ 50 ℃
Distance≤1M (recommended temperature measurement within 40cm)
PrecisionUp to 0.2 ℃ / up to 0.5 ℃

Product Appearance View


Size(mm)

Uprightl Mount


Wall Mount


Interface


Communication method

Support wired (optional WIFI / 4G wireless connection)

Network Interface

1 10 / 100M network adaptive, RJ45 interface

Audio port

Built-in speaker, voice broadcast

Relay output

1 normally open signal, 1 normally closed signal

Wiegand interface

3 (D0, D1, GND) support Wiegand 26, 34

Switch signal

Switch button 1 access, door magnetic signal access 1

Reset interface

2 (short reset: restore factory settings)


Parameter


Power supply

DV12 ± 30%

Power consumption

15W

working environment

Temperature: -30 ℃ ~ 70Humidity: 1090% RH

Protection class

IP67 protection level (except for temperature measurement module), antistatic: contact ± 6KV, air ± 8KV

Installation method

Bracket optional, wall mounted, gate mounted

Size (mm)

Length: 247mm, width: 126.9mm, thickness: 26.6mm (excluding stand)

Weight

About 1.5kg

Display


Size

7-inch IPS full screen

Brightness

450cd / m2

Resolution

1024 × 600

Proportion

9:16


Product Profiles


Non-contact fast and accurate temperature measurement, the temperature accuracy can reach 0.2 ℃, real-time temperature measurement, automatic collection and recording of body temperature information.It is suitable for the rapid temperature check of subway stations, customs ports, airports, railway stations, hospitals, schools, communities, commercial supermarkets, checkpoints, etc.


Features

üReal-time alarm, user-defined temperature detection threshold, direct data display, voice warning of abnormal body temperature, and no traffic.

üRecognition of wearing a mask, automatic recognition of whether or not a person wears a mask, voice reminders for non-wearing masks and prohibiting traffic, strengthening awareness of prevention

üFace recognition, face recognition comparison, fast target identification of abnormal body temperature, and improve the efficiency of pre-warning, processing during the event, and traceability after the event.

üFocus on control, standard configuration of 10,000-level face database for face control, linkage with public security population information management platform, or quick connection with third-party platforms,

üControl personnel identity information and activity trajectory, and carry out key management of personnel in affected areas.

üSafe and stable, using high-performance, high-stability embedded Linux system, built-in high-performance AI processor

üQuick deployment, support for gates, wall-mounted installation, optional WIFI / 4G networking communication method, rapid deployment, meet the needs of various installation environments and scenarios, reduce the risk of cross infection, save manpower and material resources

üGlobal management, full coverage of multiple scenarios in communities, parks, and port stations, a visual data platform, and management of regional data at a glance, enabling record backtracking and data analysis.


üThe use environment, using an external temperature measurement module, the temperature measurement is not affected by the fuselage work, more accurate temperature measurement, the fuselage IP67 protection level (except the temperature measurement module part), adapt to a very wide temperature range -30 ℃ ~ 70 ℃
