Small Lump Material Vibrating Screen Machine High Precision Large Process Volume

Categories Vibrating Screen Machine
Brand Name: ZK
Model Number: According to different models
Certification: CE ISO Certification
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set / Sets per Month
Delivery Time: 30 days
Packaging Details: Export standard container or as customers' requirements
Product Name: YA Vibrating Screen
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 Months
Capacity: 150-1200(t/h)
Applied material: Sand, quarry, coal, minerals, building materials, crushing and screening plant, e
Motor type: AC Motor
Spare parts: Supply all using life
Voltage: 220V/380V/440
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

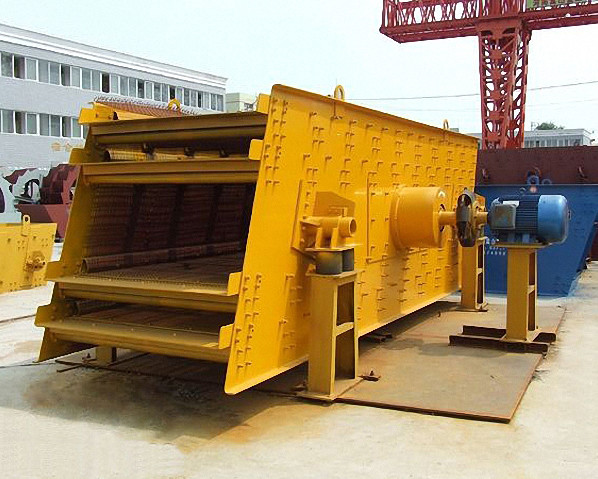

Small Lump Material Vibrating Screen Machine High Precision Large Process Volume

YA Vibrating Screen/Small Lump Material Vibrating Screen/Mesh Shale Shaker Screen from China


Introduction:

YA vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.


Application of Vibrating Screen:

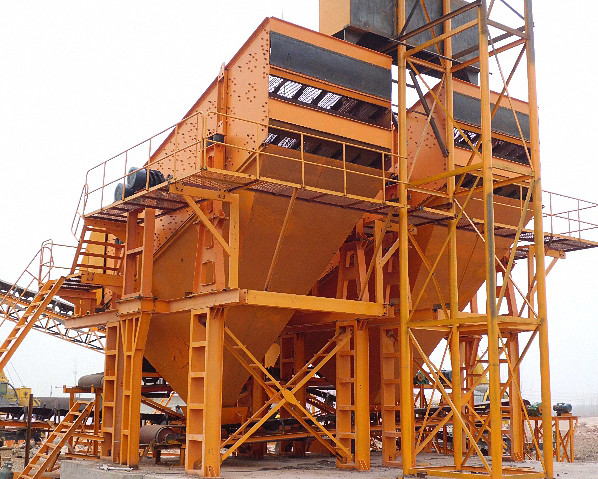

It is used for classifying granulate material and small lump material in ore dressing, building material, electricity, chemical engineering.


Mesh Shale Shaker Screen​ Structure:
YA vibrating screen is consist of driving device, screen case, exciter, damper, screen mesh. Feature of structure as below.
1. Driving device
Motor and vibration exciter use belt drive, stable running and less impact for motor


2. Screen case
It use frame structure, side plate is made by cold forming, no welding, high strength. Cross beam connect with high strength bolt, easy maintenance.


3. Damper
Use steel spiral spring as damping device, reliable performance, and long service life.


4. Screen mesh
It can use metal wire mesh, rod, cast, welding, punching hole according material property.



Advantage of Circular Motion Vibrating Screen:
1. Motor and vibration exciter use belt drive, stable running and less impact for motor
2. High screening efficiency, large process volume.
3. Screen mesh is Wear Resistance, fatigue resistance, high classification precision.
4. Use steel spiral spring as damping device, reliable performance, and long service life.
5. Use axis eccentricity as exciter, strong exciting force, which can make stuck material jump out, avoid mesh block.
6. Angle of screen mesh can be change to control process volume.



YA Vibrating Screen​ Specifications:


Model

Screen

layer

deck size

(m³)

Vibration

frequency

(r/min)

Double-

Amplitude(mm)

Capacity

(m³/h)

Motor power(kw)
2YK122422.889706-820-1205.5
YK123514.29706-820-1505.5
2YK123524.29706-820-1507.5
3YK123534.29706-820-1507.5
4YK123544.29706-820-15011
YK154516.759706-820-15011
2YK154526.759706-820-15015
3YK154536.759706-820-15015
4YK154546.759706-820-15018.5
YK154817.29706-820-15011
2YK154827.29706-820-15015
3YK154837.29706-820-15015
4YK154847.29706-820-15018.5
YK1860110.89706-832-35015
2YK1860210.89706-832-35018.5
3YK1860310.89706-832-35018.5
4YK1860410.89706-832-35022
YK2160112.69706-866-72018.5
2YK2160212.69706-866-72022
3YK2160312.69706-866-72030
4YK2160412.69706-866-72030
YK2460114.49706-875-75018.5
2YK2460214.49706-875-75030
3YK2460314.49706-875-75030
4YK2460414.49706-875-75030
2YK24752189706-8120-90030
3YK24753189706-8120-90037
4YK24754189706-8120-90045
YK30601189706-8200-90030
2YK30602189706-8200-90037
3YK30603189706-8200-90045
4YK30604189706-8200-90045
