| Categories | Carbide Wear Parts |
|---|---|
| Brand Name: | zhenfang |
| Model Number: | ZF-T1158 |
| Certification: | ISO9001:2015 |
| Place of Origin: | Hunan,China |
| MOQ: | 5KG |
| Price: | negotiable |
| Payment Terms: | L/C, D/P, T/T, D/A, Western Union |
| Supply Ability: | 18 Tons/Month |
| Delivery Time: | 3-15days |
| Packaging Details: | standard packing suitable for overseas shipment: outside carton or plywood case with inner packing |
| Material: | Tungsten carbide (WC+Co) |
| Grade: | YG6/YG8/YT5... |
| Model: | A320, A325 A120, C120..... |
| Application: | Lathe tools |
| Hardness: | HRA88-92 |
| Advantage: | high cutting performance and long lifetime |

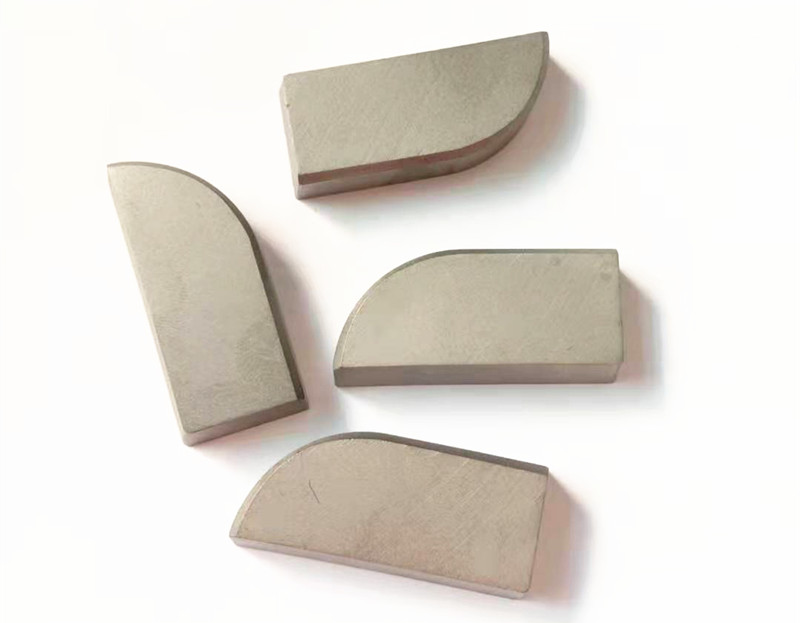

P30 K10K20 Tungsten Cemented Carbide Tips For Lathe Tools
Detail Information:
Grade: K05-10/M10-20/P10-30
Size: Customizable
Standard: GB(Chinese industrial standard )
Certification: ISO9001:2015
For milling products, we always use YG6,YG8,YG8C and YG11C(k10~k40).
| Product Name | tungsten carbide brazed tips A320 |
| Material | 100% Virgin Tungsten Carbide |
| Grade | Yg6/YG8/YT5.... various grade |
| Application | Lathe ntools |
| Property | High quality and stability High performance. dimensionally accurate,good |
| Grain size | 0.6um-1.0um |
| Powder compaction | Extrusion/Press |
| Sintering | HIP sintering |
For inquiry, please offer us the drawing or material list
| K10 | YG6 | 14.8~15.1 | ≥1800 | ≥90 | Suitable for finish machining of cast iron and non-ferrous metals and machining of nonmetal,also suitable for machining of manganese steel and hardened steel |
| RK10 | 14.7~15.0 | ≥1860 | ≥91 | ||
| RK10F | 14.8~15.1 | ≥1800 | ≥90.5 |
| K20 | YG8 | 14.7~15.0 | ≥2200 | ≥89.5 | suitable for semi-finishing of cast iron and mild alloy.also for wood.plastic.chemical fiber.rubber.paperboard and nonmetal. |
| RK20F | 14.60~14.9 | ≥2000 | ≥91 |
| K30 | YG9C | 14.4~14.8 | ≥2060 | ≥89.0 | suitable for machine part.press tool.Geological Mining Tools.wear part.standard component.platen for hot rolling.formwork.corrosion resisting |
| YG11C | 14.0~14.6 | ≥2100 | ≥88.0 | ||
| YG13C | 14.0~14.6 | ≥2300 | ≥86.5 | ||
| YG15C | 13.8~14.4 | ≥2500 | ≥86.0 | ||
| YG15 | 13.8~14.4 | ≥2360 | ≥87.0 | ||
| K40 | YG20C | 13.4~14.0 | ≥2600 | ≥83 | |
| YG20 | 13.4~14.0 | ≥2520 | ≥85 | ||
| YG25 | 12.8~13.6 | ≥2700 | ≥81 | ||
| RLN15 | 7.7~8.3 | ≥1720 | ≥88.5 |
Model reference
| A1 Type: | A106 A108 A110 A112 A114 A116 A118 A118A A120 A122 A125 A125A A130 A136 A140 A150 A160 A170 |
| A2 Type: | A208 A210 A212 A216 A220 A225 |
| A3 Type: | A310 A312 A315 A320 A325 A330 A340 |
| A4 Type: | A406 A408 A410 A412 A416 A420 A425 A430 A430A A440 A440A A450 A450A |
| A5 Type: | A515 A518 |
| A6 Type | A612 A615 A618 |
Our advantages
1. We are real factory in Zhuzhou: competitive price
2. we adopt advance production and testing equipment : good quality
3. We have professional technicians: providing professional solution and suggestion
4.100% virgin material
5.100%inspection before shipment
6. Fast response and delivery
| Packing | Outside Carton or plywood case with inner plastic box. |
| Shipping | UPS,TNT,EMS,Fedex,DHL,or by sea,as you request. |
|
