| Categories | Rigid Flex PCB |
|---|---|
| Brand Name: | Linked Electronics |
| Model Number: | LPCB1125 |
| Certification: | UL, TS16949, ISO14001, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | by negotiation |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10, 000sqm per month |
| Delivery Time: | 5 working days |
| Packaging Details: | vacumm package+carton box |
| Product Name: | Rigid Flex PCB |
| Spec: | 0.8mm+0.1mm PI 1oz Green Soldermask White Legend |
| Material: | FR4 Polyimide |
| Lead Time: | 15 days |
| Certificate: | UL/TS16949/ISO9001/ISO14001 |
| Rohs: | Rohs Compliant |
| Company Info. |
| Linked Electronics Co., Limited |
| View Contact Details |
| Product List |

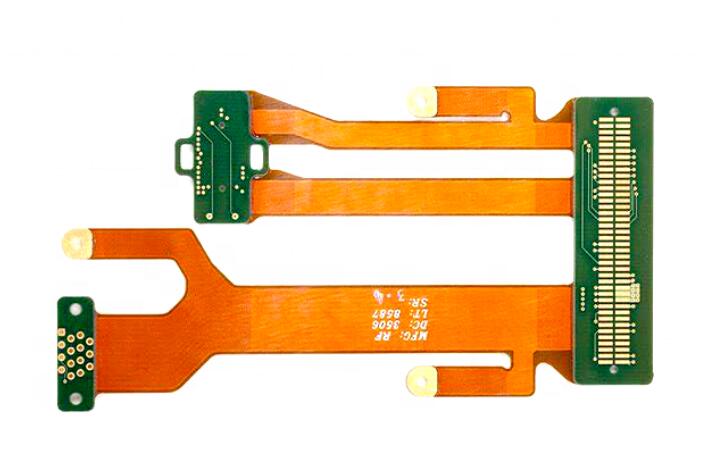

Rigid Flex PCB Customized Polyimide FPC Rigid Flex PCB with Immersion Silver
Linked Electronics has over 20 years experience in the Electronics Industry. We specialize in the Printed Circuit Board Manufacturing and Assembly Industry. Our core business includes manufacturing single, double and complex multilayer printed circuit boards. All printed circuit boards are manufactured using advanced quality control systems and are recognized by ISO-9001, ISO14000, IPC-A-600, UL Certification and RoHS compliance if required.
Features
1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. UL, CE, ROHS Compliant
4. Lead Free HASL, Environmental Friendly
5. SMT, DIP technology support
6. FR4 Material, Meet 94V0 standard
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement
Main Technique Index:
| Description | Parameters | |
| Polyimide | Polyester | |
| Base film thickness (μ m) | 12.5/25/35/50 | 12.5/25/35/50 |
| Copper thickness (μ m) | 12/17.5/35/50/70/105 | |
| Min line width/Line space (mm) | 0.075 | |
| Min hole size (mm) | 0.15 | |
| Tolerance (mm) | Outline ± 0.05 / Coverlay ± 0.2 | |
| Peel Strength (Kgf/cm) | Above 1.0 | Above 0.8 |
| Solder Resistance | 260℃ 10s(Second) | 204℃ 5s (Second) |
Medical and Bio-medical: When strict quality standards are required, various niche medical
device companies and medical equipment OEM manufacturers depend on
us for their medical PCB and PCBA manufacturing.
Industrial, Automotive, and Commercial: With over 2 decades of PCB expertise, we have a huge array of
customers that are leaders in their commercial and industrial
niches. With our high-technology PCB capabilities, we have created
long-lasting partnerships throughout various industrial and
commercial niches.
Students and Hobbyist: With our straightforward and no hidden cost PCB pricing, we have
earned the trust of multiple educational institutions from around
the world. When students need affordable printed circuit boards for
their various university projects, they rely on Linked Electronics.
