Ore Sand Rotary Screening Machine Simple Structure Customized Small Size

Categories Rotary Screening Machine
Brand Name: MZZG
Model Number: YTS1540
Place of Origin: Henan, China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 set 15 set per month
Delivery Time: 35 work days
Packaging Details: Depond on product
Type: Cylinder rotary screen
Using range: Metallurgy, mining,building material, etc
Voltage: As your requirement
Dimension(L*W*H): 1500*1500*4000
Mesh size: 2-500mesh
Material: Carbon steel
Usage: Separation Screening
Features: low noise,large capacity,energy saving
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ore Sand Rotary Screening Machine Simple Structure Customized Small Size

Ore Sand Rotary Screening Machine Simple Structure Customized Small Size


Introduction

Rotary screen is a new generation of sieve equipment, mainly composed of inlet and outlet, motor, gear-box, frame, roller device, etc. It can be used in chemical, coking, mining, power plant, building materials, metallurgy and other industries. The roller unit is tilted and mounted on the frame, and the outside is sealed by a sealed spacer to prevent contamination.

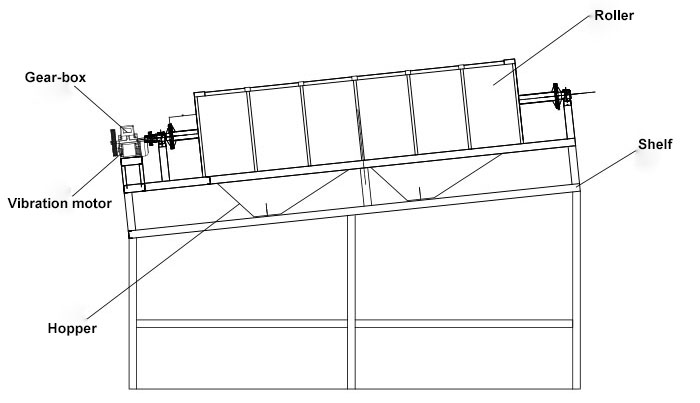

Structure

Working principle

When the material enters the drum, the material on the screen surface is turned and rolled due to the inclination and rotation of the drum, so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (the product on the screen) is discharged through the discharge port at the rear end of the drum.As the material in the roller turnover, rolling, so that the material stuck in the screen hole can be ejected, to prevent the screen hole blocked.


Tech specifications

Model
Capacity(m3/h)
Power(Kw)
Mesh(5mm)
Mesh(30mm)
YTS1230
30-50
100
5.5
YTS1240
30-50
120
5.5
YTS1250
30-60
140
5.5
YTS1530
50-70
150
5.5
YTS1540
50-70
150
7.5
YTS1550
50-100
180
11
YTS1560
50-100
200
11
YTS2040
100-130
250
15
YTS2050
100-150
300
15
YTS2060
150-200
350
18.5

Application

The materials that can be processed are mud, stone powder, sand and stone separation, lump coal, coal powder, stone in the stone yard and so on. It is widely used in the classification and separation of materials in the coal industry, chemical industry, mineral processing industry, sandstone field and other industries.

Performance Features

1. The vulnerable parts of the roller screen are all made of higher wear-resistant materials, and the service life of the equipment is 1.5 times longer than that of the previous equipment.

2. The sieve tube can be closed, which is easy to close and collect dust.

3. The roller screen adopts computer control operation, compared with other equipment, the automatic program is high.

4. The special screen used has high screening efficiency and long service life.

5. Unique design, effectively reduce vibration, and make the machine run more smoothly.

6. The roller screen machine has high reliability and small one-time investment.
