| Categories | Deep Cone Thickener |
|---|---|
| Brand Name: | MZZG |
| Model Number: | WS-6700 |
| Place of Origin: | Henan, China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set 15 set per month |
| Delivery Time: | 35 work days |
| Packaging Details: | Depond on product |
| Name: | Gravity Deep Cone Thickener High Efficiency Safe For Ore Processing Plant |
| Application: | Slurry water |
| Production Capacity(m³/h): | 200-250 |
| Dimension(L*W*H): | 6000*6000*7500 |
| Function: | Solid-liquid Separation |
| Advantages: | Change slurry water into clean |
| Port: | Shanghai/Qingdao |
| After Sales Service: | Long Time Service |

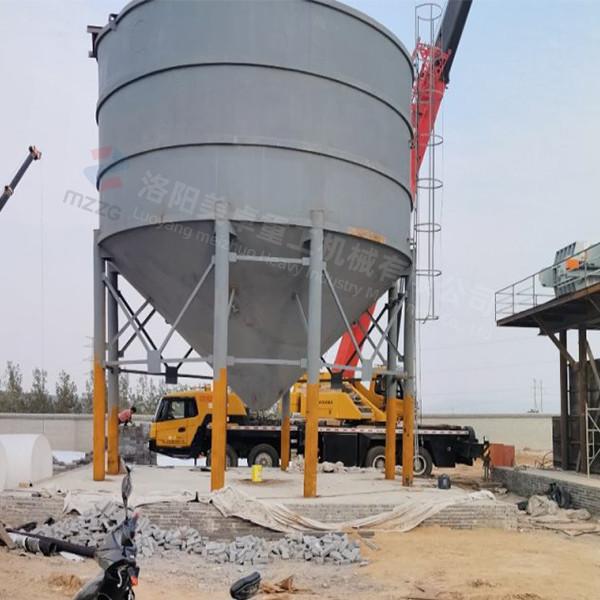

Gravity Deep Cone Thickener High Efficiency Safe For Ore Processing Plant
Equipment use
In view of the fact that the sand washing wastewater is not treated, no recycled, and scattered everywhere, and the water systems of rivers, mountains, cities, and villages are seriously damaged, we have developed and manufactured a sewage purification equipment, which is widely used in Sand and aggregate plant, precious metal beneficiation plant, ceramics, glass and other industries.
What is the function of this Deep cone thickener?
The deep cone thickener completely replaces the traditional sedimentation tank through the interaction of the internal mechanism of the tank and the flocculant. The sewage washed into sand is clean and can be recycled for sand washing and water reduction. The occupation of resources and land meets the requirements of environmental protection and sustainable development.
Structure
Clear water discharge display
Tech specification
| Model | Feed concentration | Weight (kg) | Tank diameter (mm) | Process capacity(m³/h) | Dimension L*W*H (mm) |
| WS-3600 | ≤20 | 6000 | Φ3000 | 100-120 | 3000*3000*6500 |
| WS-6700 | ≤20 | 13500 | Φ6000 | 200-250 | 6000*6000*7500 |
| WS-8700 | ≤20 | 33000 | Φ8000 | 250-350 | 8000*8000*7500 |
|
