| Categories | Coaxial Cable Connector |
|---|---|
| Brand Name: | OEM Produce |
| Model Number: | Coaxial Connector |
| Certification: | CE. ROHS. |
| Place of Origin: | Hangzhou, China |
| MOQ: | 30KM |
| Price: | 0.3usd/pcs |
| Payment Terms: | TT. LC |
| Supply Ability: | 5000km/ Month |
| Delivery Time: | 20days after deposit |
| Packaging Details: | 100M. 200M. 300M. 1000FT. 500M. Reel |
| Material: | Zinc Alloy |
| Useful: | CATV |
| Type: | RG59 RG6 Plug Blue Ring |
| Certificate: | RoHS CE |
| Name: | F Male Compression F Coaxial connector and Adaptor |
| Company Info. |
| Hangzhou Aite Cable co.,Ltd. |
| View Contact Details |
| Product List |
Product Details: F Male Compression Connector for RG6 Blue/ CCTV Connector
Description:

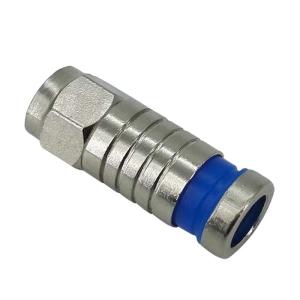

F Male Compression Connector for RG6 Cable with Blue Ring.
Body material: Zinc alloy
Insulating material: PTFE
Length: 31mm
Weight: 7g
| Major Technical Characteristics | |
| Temperature Range | -25 to +60 degree |
| Vibration | 100m/S2 (10 to 500 Hz), 10G |
| Impedance | 75ohm |
| Frequency Range | DC-1GHZ |
| Center Contact Resistance | ≤10Mohm |
| Outer Contact Resistance | ≤5Mohm |
| Insulation Resistance | ≥1000Mohm |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltage Standing Wave Ratio : | |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Durability (Mating) | ≤500(cycles) |
Application:
The F connector is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or, in older installations, with RG-59/U cable.
The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz and has usable bandwidth up to several GHz. Most male connectors have a matching threaded connecting ring, though push-on versions are also available.
Push-on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV transmitter will interfere with a CATV station).
Keywords:
F male compression Connector, F compression connector, F Connector, CCTV Connector, cable connector, coaxial connector, F Male Compression Connector for RG6 Cable.
|
