| Categories | Hollow Shaft Motor |
|---|---|
| Brand Name: | ZOZHI |
| Model Number: | HS90L2-4 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 10PCS |
| Price: | negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 25 working days after received your payment |
| Packaging Details: | Packed in cartons,veneer case or wooden case. |

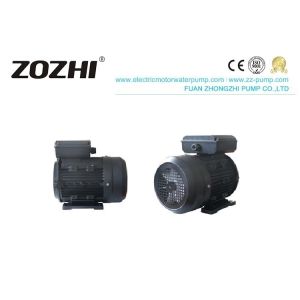

| Product Name: | Hollow Shaft Motor |
| Application: | cleaning machine |
| Output: | 2.2KW/3HP |
| Pole: | 4 |
| Rotation direction: | Clockwise |
| Motor Bearing:: | C&U (SKF for Choice) |
| Motor Housing:: | Aluminum |
| Insulation Class:: | F class |
| Company Info. |
| Fuan Zhongzhi Pump Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
All hollow shaft motor three-phase motors performance conforms to dimensions according to the customer or as per application requirement
A three-phase hollow shaft motor is supplied in a robust, rugged cast iron frame with integral feet. On Request, we can provide a motor in the aluminum body up to 160L frame.
All hollow shaft motor standard three-phase motors are continuously rated to comply with performance standards
hollow shaft motor bearings are adequately lubricated with lithium-based high temp up to 150 deg. all the motors are supplied with a C3 ball bearing & fully charged with lithium base grease at the time of assembly
Advantage:
1. High efficient
2. More transmission torque
3. Smooth finishing
4. Lower noise
5. More convenient to install
6. Simple maintenance
7. Corrosion resistance
| Ambient temperature | -15℃≤θ≤60℃ |
| Altitude | ≤1000m |
| Protection class | IP54 |
| Insulation class | class F |
| Rated voltage | 220V, other voltage on Request |
| Cooling type | IC 0141 |
| Duty | Continuous(S1) |
| Rated frequency | 50HZ, other frequency on Request |
Application
For high-pressure pump
For clean machine
Production line
Production data
| Single-Phase 2 Poles 3000Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2790 | 0.95 | 62 | 12.5 | 230 | 2.7 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.98 | 61 | 16 | 230 | 4.0 |
| 90L1-2 | 1.8 | 2.5 | 2850 | 0.95 | 65 | 50 | 230 | 12.7 |
| 90L2-2 | 2.2 | 3 | 2840 | 0.99 | 72 | 60 | 400 | 13.4 |
| 100L2 | 2.2 | 3 | 2850 | 0.96 | 74 | 85 | 400 | 15.3 |
| Single-Phase 4 Poles 1500Rpm 50Hz | ||||||||
| FRAME | POWER | RPM | COSφ | EFF.% | CAPACITOR | VOLT | AMPERE | |
| KW | H.P. | P.F. | U.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1360 | 0.91 | 57 | 10 | 230 | 2.1 |
| 712-4 | 0.37 | 0.5 | 1380 | 0.94 | 65 | 16 | 230 | 2.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.98 | 70 | 45 | 230 | 9.5 |
| 100L1-4 | 1.85 | 2.5 | 1390 | 0.97 | 68 | 55 | 230 | 12.2 |
| 100L2-4 | 2.2 | 3 | 1350 | 0.99 | 74 | 70 | 230 | 13.1 |
| 100L3-4 | 2.6 | 3.5 | 1350 | 0.96 | 74 | 80 | 230 | 17.5 |
| 112M1-4 | 3 | 4 | 1400 | 0.98 | 74 | 80 | 230 | 18.1 |
| 112M2-4 | 3.7 | 5 | 1410 | 0.96 | 76 | 100 | 230 | 22 |
| Three-Phase 2 Poles 3000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-2 | 0.37 | 0.5 | 2780 | 0.82 | 82 | 400 | 0.8 |
| 712-2 | 0.55 | 0.75 | 2790 | 0.83 | 81 | 400 | 1.2 |
| 90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| 90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| 90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| 100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| 100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| 100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| 112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| 132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| 132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| 132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| 132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| 160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| 160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| Three-Phase 4 Poles 1500Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 711-4 | 0.25 | 0.35 | 1370 | 0.73 | 64 | 400 | 0.8 |
| 712-4 | 0.37 | 0.5 | 1350 | 0.74 | 68 | 400 | 1.1 |
| 713-4 | 0.55 | 0.75 | 1350 | 0.75 | 66 | 400 | 1.6 |
| 90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| 90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| 90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| 100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| 100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| 100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| 100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| 112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| 112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| 112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| 112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| 132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| 132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| 132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| 132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| 132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| 160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| 160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| Three-Phase 6 Poles 1000Rpm 50Hz | |||||||
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| KW | H.P. | P.F. | V | A | |||
| 71-6 | 0.25 | 0.35 | 880 | 0.73 | 45 | 400 | 1.1 |
| 90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| 100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| 112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| 112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| 132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| 132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| 132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| 132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| 160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| 160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
 |
 |
 |
 |
 |  |
 |
 |
 |
Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services
from designing, printing to processing. Customers can provide the
design according to your Request and sample making. Also, we can
advise how to make the products according to customers' target
prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at
sight.
|
