Explosion - Proof Certification Fixed Gas Detector , Fixed H2s Monitor

Explosion - Proof Certification Fixed Gas Detector , Fixed H2s Monitor

Explosion - Proof Certification Fixed Gas Detector , Fixed H2s Monitor
Explosion - Proof Certification Fixed Gas Detector , Fixed H2s Monitor
Categories Fixed Gas Detector
Brand Name: BOSEAN
Model Number: BH-60
Certification: FCC, CE, RoHS, SIL, ATEX
Place of Origin: China
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Credit Card
Supply Ability: 50units per day
Delivery Time: 1-7 days
Packaging Details: gas detection system will be packed with the export standard carton package or aluminum box or as per customer require
Working Voltage: Working Voltage
Output signal: 4-20mA/RS485
Alarm Method: Sound & light
Color: Blue or Yellow
Gas: Combustible gas or Toxic gas
Contact Now
Company Info.
Henan Bosean Electronic Technology Co., Ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Explosion - Proof Certification Fixed Gas Detector , Fixed H2s Monitor

New arrival fixed h2 gas detector with high sensitivity sensor ATEX certificate

Description:

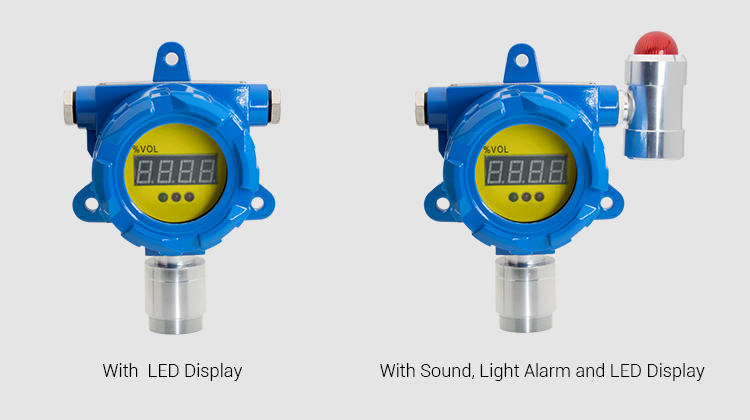

BH-60 fixed gas detector is a fixed type gas detection alarm device, applies to all kinds of toxic and oxygen gases leak in industry. Beautiful appearance, durable materials, high measurement accuracy, fast response time. Widely used in steel industry, metallurgic industry, petroleum, chemical industry etc.

Technical Parameters
Product Name
BH-60 fixed combustible gas leak detector factory price
Detection Gas
Combustible gas, CO2, CO, H2S, SO2, NH3, SO2, CL2... over 30 kinds of gases
Color
Blue, yellow
Measure Range
Optional according to detecting gas
Sampling Method
Natural Diffusion
Debug Method
Infrared control
Display Unit
%LEL, ppm, %VOL
Response Time
<30s
Load Resistance (4-20mA)
≤250Ω
Accuracy
±5%F.S
Working Voltage
DC24V±15%
Repeatability
±3%F.S
Working Temperature
Combustible gas: -40℃~70℃
Toxic gas: -20℃~50℃
Working Humidity
≤95%RH, non condensation
Output Signals
4~20mA, free contact (0.5A/AC220V)
Explosion-proof Grade
Exd II CT6
Protection Grade
IP55
Power Consumption
≤3W
Cable
≥RVVP1.5m㎡ *3
Transmit Distance
≤1000 m
Pressure
86kPa~106kPa
Install screw thread
G3/4
Dimensions
190*150*95mm
Weight
1220g
Shell Material
Aluminium

-Packaging:
1.Carton box 24.5*16*9cm, G.W.:0.56kg
2. Aluminum box 22*15*9cm G.W.0.72kg
-Fast delivery:
Sample order in stock and 3-7 working days for bulk production.
-Payment:
T/T, Western Union, PayPal & Money Gram are available.
We accept Alipay on Aliexpress.
Visa,MasterCard,Western Union,Qiwi and Bank Transfer are available.
Payment must be made within 3 days after place order.
-Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You also can choose your own shipping forwarder.

Our Services

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Detecting Gas

No
Detecting Gas
Gas
Measure Range
Resolution
Alarm Point
(High / Low)
1
Combustible Gas
EX
0-100%LEL /0-100%VOL
1%LEL/1%VOL
20 / 50% LEL
2
Oxygen
O2
0-25% /30%VOL
0.1%VOL
19.5% / 23.5%VOL
3
Hydrogen Sulfide
H2S
0-50/100/200/1000 ppm
0.1 ppm
10 / 20 ppm
4
Carbon Monoxide
CO
0-500/1000/2000/5000 ppm
1 ppm
50 / 150 ppm
5
Nitrogen Dioxide
NO2
0-20/50/1000 ppm
0.1 ppm
5 / 10 ppm
6
Nitric Oxide
NO
0-250/500/1000 ppm
1 ppm
50 / 150 ppm
7
Carbon Dioxide
CO2
0-5000 ppm /0-1%/5%/10%VOL
1 ppm/0.1%VOL
1000 /2000 ppm
8
Sulfur Dioxide
SO2
0-20/50/100/200/1000 ppm
0.1 /1 ppm
5 / 10 ppm
9
Chlorine
CL2
0-20/100/1000 ppm
0.1 ppm
5 / 10 ppm
10
Ammonia
NH3
0-50/100/500/1000 ppm
0.1 ppm
20 / 50 ppm
11
Hydrogen
H2
0-1000/5000 ppm
1 ppm
50 /150 ppm
12
Phosphine
PH3
0-5/20/50/100/500/1000 ppm
0.1 ppm
5 / 10 ppm
13
Hydrogen Chloride
HCL
0-20/500/1000 ppm
0.01/0.1 ppm
5 / 10 ppm
14
Chlorine Dioxide
CLO2
0-10/50/100 ppm
0.1 ppm
5 / 10 ppm
15
Hydrogen Cyanide
HCN
0-50/100 ppm
0.01/0.1 ppm
10 / 20 ppm
16
Ethylene Oxide
C2H4O
0-10/20/50/100/200/500 ppm
0.1 /1 ppm
20 / 50 ppm
17
Ozone
O3
0-10/20/100 ppm
0.1 ppm
2 / 5 ppm
18
Formaldehyde
CH2O
0-20/50/100 ppm
0.1 /1 ppm
5 / 10 ppm
19
Hydrogen Fluoride
HF
0-1/10/50/100 ppm
0.01 /0.1 ppm
2 / 5 ppm
20
Methylbenzene
0-1/10/20/50/100 ppm
0.01 /0.1 ppm
5 / 10 ppm

Note: Other gas and measure range not listed are all support customize, please contact us for more details.
