| Categories | FTTH ONU |
|---|---|
| Brand Name: | JiZhong |
| Model Number: | JZOG-6404 |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 5 work days |
| Packaging Details: | Standard export package |
| Items:: | WiFi 1GE 3FE FTTH ONU |
| split ratio:: | 1:64 |
| Transmission distance: | 20KM |
| Ethernet:: | 100Mbps |
| LED Indicator: | PWR, SYS,PON, LAN1~LAN4, CATV,WIFI |
| Operating temperature: | 0 to 50 ºC |
| Storage temperature: | -40 to 85 ºC |
Single Fiber WiFi 1GE 3FE FTTH ONU With RF Port
Model NO: JZOG-6404
Brief introduction of FTTH ONU:
1) xPON adaptive GPON and EPON mode supported;
2) Protocol: GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol;
3) support VoIP, wifi bgn or CATV(see detailed model function);
4) support L2/L3 multicast forwardingL2 bridge forwarding L3 router forwarding NAT/NAPT;
5) support flexible traffic classification;
6) support HQoS (Hiberarchy Quality of Service);
CATV Specification:
Turn on/off RF output remotely
Wavelength:1310/1550 +/- 10nm
Optical return loss:>45dB
Input optical power:-20dBm~+2dBm
RF frequency:87MHz~1000MHz
RF output level:70~80dBuV
Optical AGC range:-15 to -5 dBm
FTTH ONU Specifications:
| Items | Parameter | ||
| Interface | PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM | |
| User Interface | 3*10/100Mauto-negotiation;1*10/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector | ||
| Power Interface | 12V DC Power supply | ||
| Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber | |
| Data Transmission Parameter | PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | ||
| Business Capability | Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection | ||
| Network Management | Management Mode | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management | |
| Management Function | Status monitor, Configuration management, Alarm management, Log management | ||
| Indicator | LED Indicator | PWR, SYS,PON, LAN1~LAN4, CATV,WIFI | |
| Physical Features | Shell | Plastic casing | |
| Power | External 12V 1A AC/DC power supply adapter Power consumption: <5.5W | ||
| Dimension and Weight | Item Dimension:175mm(L) x 120mm(W) x 32mm (H) Item weight:0.4kg | ||
| Environmental Specifications | Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) | ||
FTTH ONU With WiFi and RF Port Specifications:
Performance parameters | Operating Mode | Router or bridge | |
| Throughput | IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps | ||
| Frequency | 2.412 ~ 2.472 GHz | ||
| Channel | 13*Channel, configurable to meet the standard of USA, Canada, Japan and China | ||
| Modulation | DSSS , CCK and OFDM | ||
| Coding | BPSK, QPSK, 16QAM and 64QAM | ||
| RF receive sensitivity | 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps | ||
| RF output level | 802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps | ||
| Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) | ||

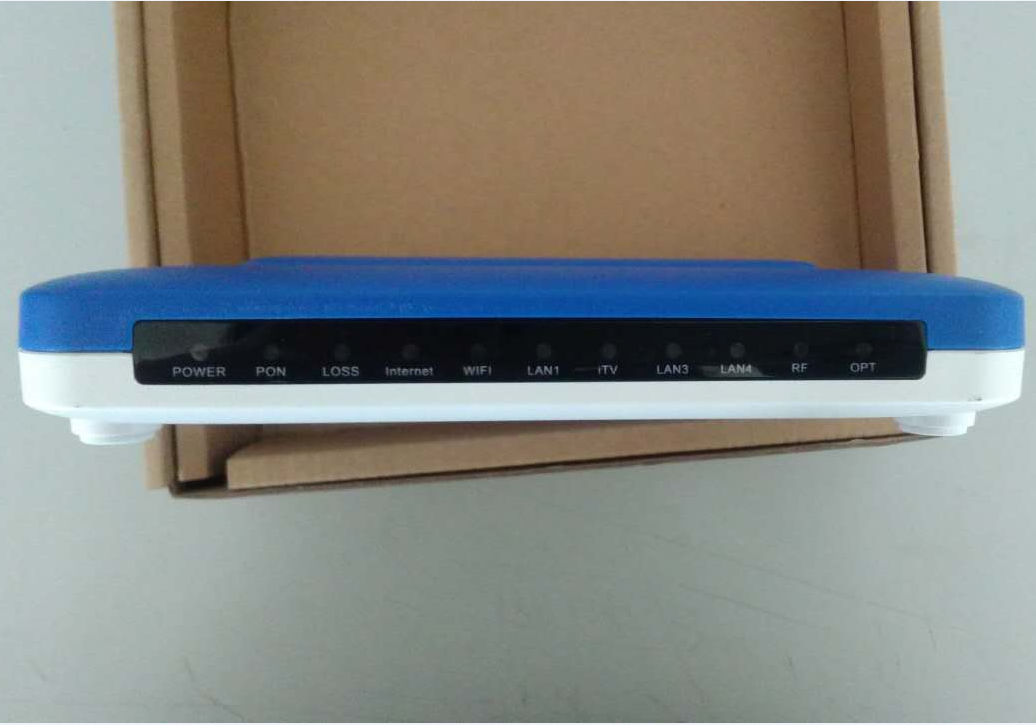

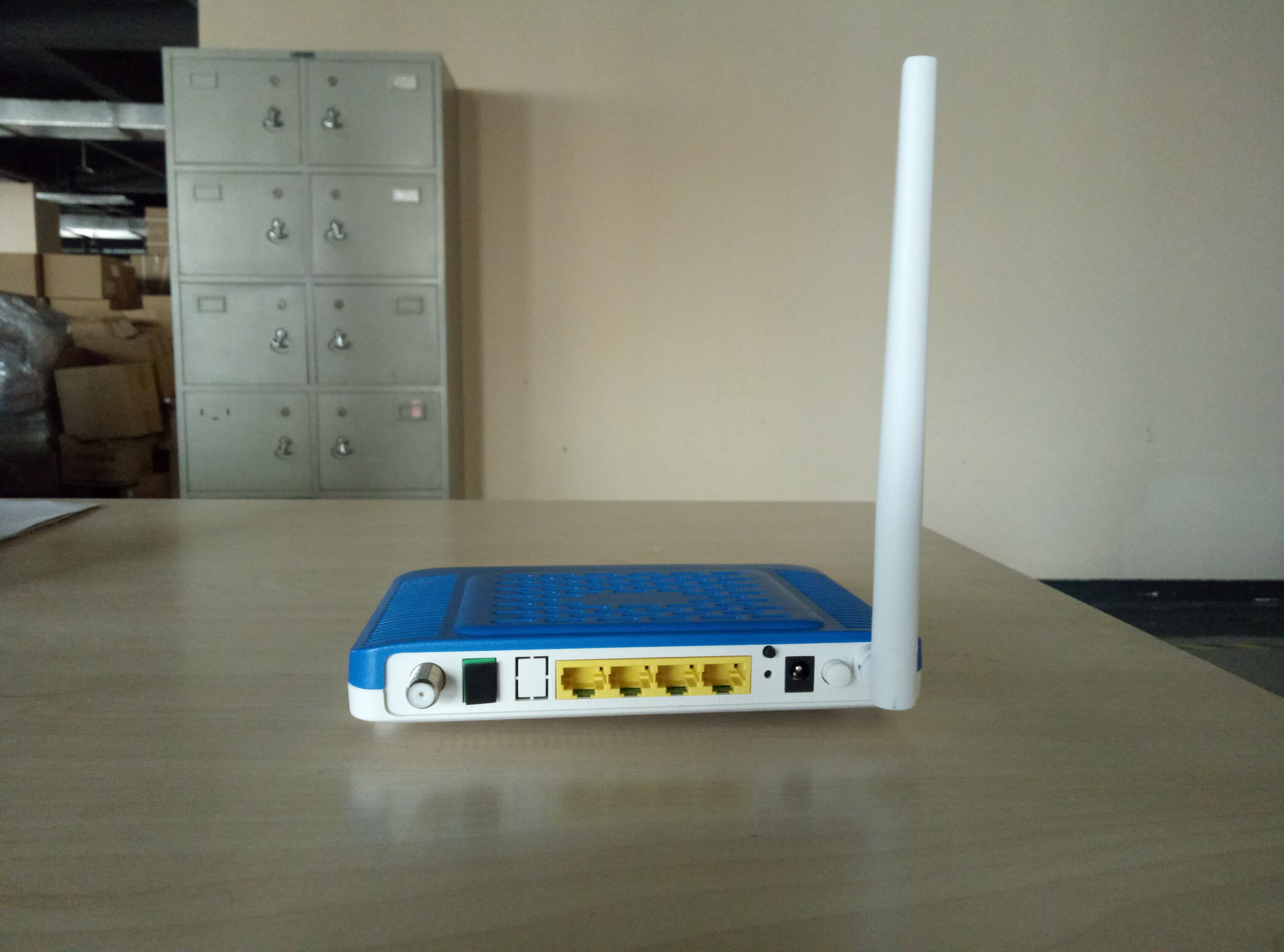

FTTH ONU Photos:

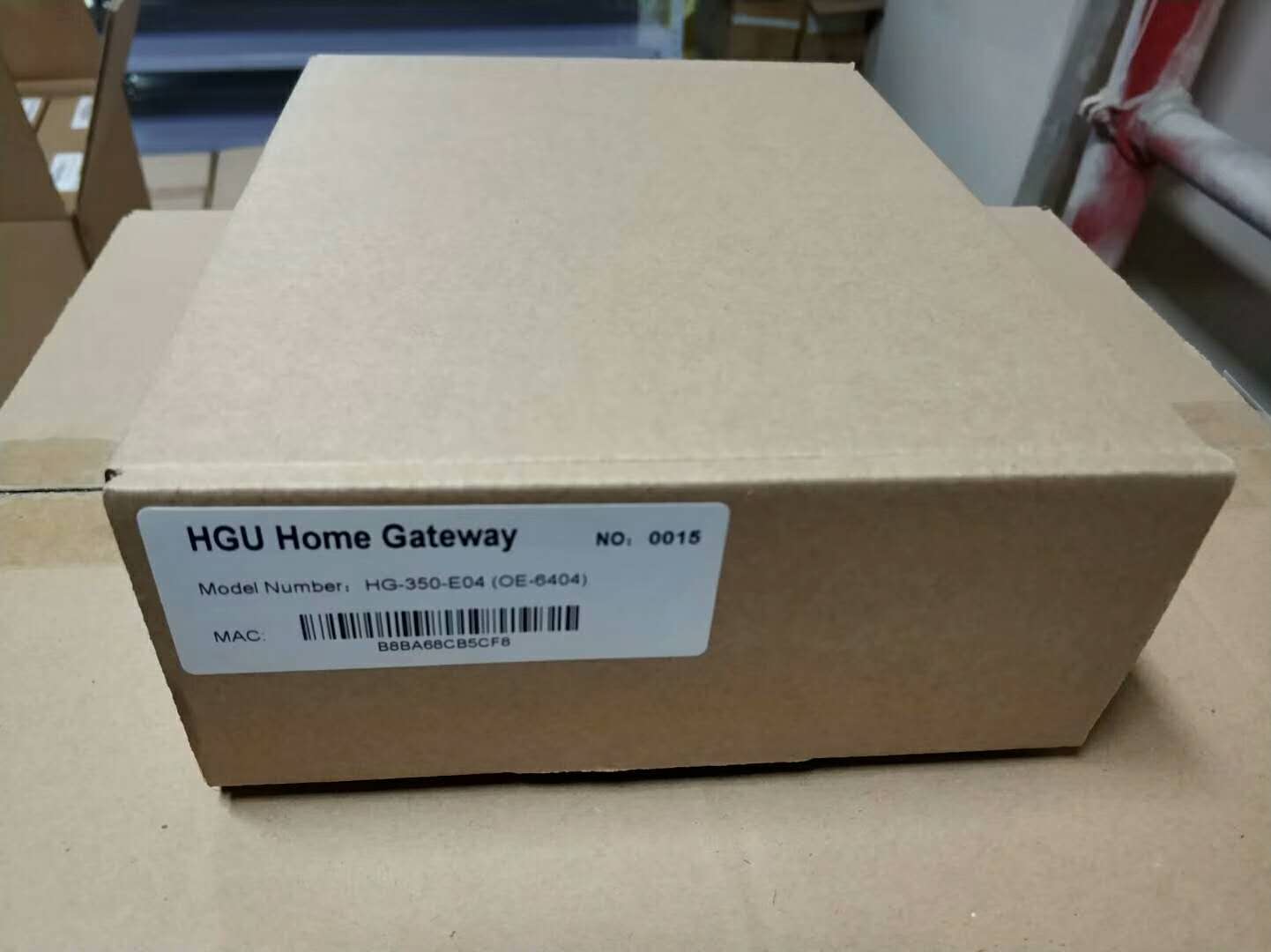

FTTH ONU Package:
| |||
|
