Drone HD Wireless Video Transmitter for 45km range with HDMI and IP Video output Simultaneously

Categories Drone Video Transmitter
Brand Name: IFLY
Model Number: FIM-1440
Certification: FCC, CE
Place of Origin: CHINA
MOQ: 1Set
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200sets/month
Delivery Time: 5-8working days
Packaging Details: 1set/carton
Bandwidth: 2/4/8Mhz
Modulation: DVB-T/DVB-T2/DVB-T2
Distance: Air to ground 40-45km
Delay: 50ms
Video Input: HDMI
Video Output: HDMI and IP to PC
Encryption: AES 128 Bit
Rx Antenna: Panel Antenna
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Drone HD Wireless Video Transmitter for 45km range with HDMI and IP Video output Simultaneously

Drone HD Wireless Video Transmitter for 45km range with HDMI and IP Video output Simultaneously


UAV Downlink Systems

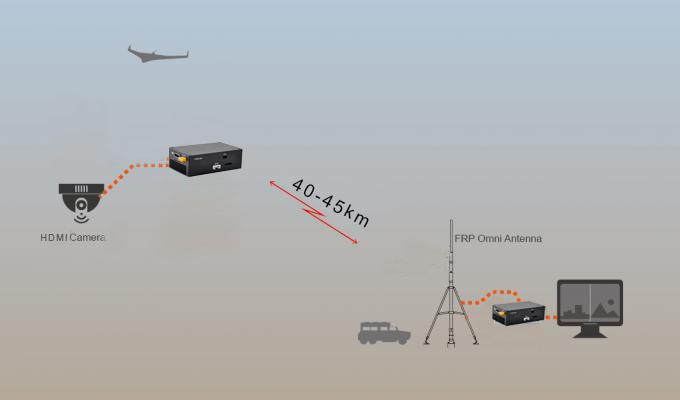

FIM-1440 is a Drones/VTOL Downlink Systems. It is used in a growing number of civil applications, such as firefighting or non-military security work including police surveillance and are often preferred for missions that are too "dull, dirty, or dangerous" for manned aircraft. Our portfolio of UAV datalinks are ideal for this type of application, being small but robust and ideal for providing high quality link continuity as well as superior range. All of our links are available in high definition (HD) formats giving peace of mind when being used for evidence gathering or providing situational awareness for high risk operations.


Features

  • Frequency range: 1.300-1.399Ghz/1.400-1.499Ghz(Adjustable by software)
  • Video Input: HDMI
  • Resolution: HD 1080P
  • Distance: Air to ground 40-45km
  • Latency: 50ms
  • Operating temperature: -40—85℃
  • Dimension: Tx: 97mm×57mmx30mm/
  • Rx: 91mm×72mmx30mm
  • Weight: Tx:200g/Rx:202g

Application:


FIM-1440 wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, Military, and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.



Parameters
Wireless Channel1.400-1.499Ghz(Adjustable by software)
Communication Bandwidth2/4/8MHZ
RF Transmission Power2.5W
Data Rates1.5/3/6Mbps
RX Sensitivity-103dbm
Interfaces on Transmitter1080P60 HDMI RX×1
Power Input Interface--XT30 Industrial Grade ×1 DC 16-48V
USB 2.0--For linking configure software only.
SMA RF ×1
Interfaces on Receiver1080P60 HDMI Mini TX×1
LCD--Displaying RSSI and link state.
Buttons×5--For configuring receiver model.
Power Input Interface--XT30 Industrial Grade ×1 DC 9-24V
SMA RF ×2
Wireless Fault ToleranceFEC/MPEG
ModulationDVB-T/DVB-T2/DVB-T2
Distance Range

35-60km

Notes: True distance is related to the environment.

Total Latency50ms
Reconnection timeLess than 1s after signal has been recovered
Adjustment of COFDMQPSK one-way
Overall Consumption Power(Maximum)

Transmitter terminal: 25W

Receiver terminal: 12W

Temperature Range

Operating temperature: -40—85℃

Storage temperature: -55 - 125℃

Dimensions

TX: 97mm×57mmx30mm

RX: 91mm×72mmx30mm

RadiatorFancooler or aluminum heat sink
Gram

TX: 200g

RX: 202g
