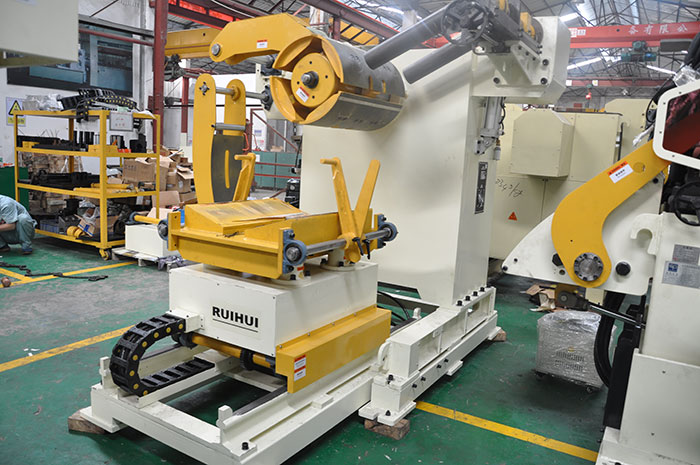

AC 5.5KW NC Servo Feeder Accurate Feeding Punching Processing High Precision Coil Handling System

Categories Decoiler And Straightener
Brand Name: RUIHUI
Certification: CE, ISO certification
Place of Origin: Guangdong, China (Mainland)
MOQ: 1 Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets Per Month
Delivery Time: 30 work days
Packaging Details: Wooden Box or Vacuum Packing
Model Number: MAC3-800
Condition: New
Stock Width(mm): 70~800
Stock Thickness(mm): 0.3~4.5
Line Speed(M/Min): 16~24
Coil Weight(Kg): 5000
Work Roll Number: up 4/down 3
Feed Roll Number:: 1
Main Motor: AC5.5
Mandrel Expansion: hydraulic
color: customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AC 5.5KW NC Servo Feeder Accurate Feeding Punching Processing High Precision Coil Handling System


AC 5.5KW NC Servo Feeder Accurate Feeding Punching Processing High Precision Coil Handling System
NC servo feeder: Also known as CNC feeder, NC feeder, it is a model that uses a full CNC system (Mitsubishi PLC, Mitsubishi servo motor and 7-inch touch screen) to drive the feeding roller to achieve precise feeding.
The setting of the feeding parameters (length, speed, number of times) can be easily set on the touch screen, the feeding length is not limited, and the multi-stage feeder can be used.
Ruihui NC servo feeder is the punching machine with the widest application range, the highest feeding precision (usually ±0.02mm), the best stability, the easiest operation and commissioning, and the highest degree of customization.
Advantages: The servo feeding precision is extremely high, with multi-stage, long-step feeding function, the operation and debugging is extremely simple, and the customization is extremely high (various thick plates and yaw type), especially suitable for precision machining occasions.

Disadvantages: The cost of the model is higher, and the feeding speed cannot be too fast (the response time of the servo system).
NC servo feeder

Specification:

ModelMAC2-400MAC2-500MAC2-600MAC2-800
Stock Width(mm)50-40050-50050-60050-800
Stock Thickness(mm)0.3~3.20.3-3.20.3-3.2-3.2
Max.Coil Weight(kg)300030003000500050007000
Max.Coil O.D.(mm)120012001200
Coil I.D.(mm)88508508
Feed Length(mm)~500*~500*~500*~500*
Max. Line Speed(m/min)16-2416-2416-2416-24
Work Roll Number(pieces)upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
upper 6
lower 5
Feed Roll Number(set)1111
Main Motor(kw)AC2.9AC2.9AC4.4AC4.4
Mandrel Expansionhydraulichydraulichydraulichydraulic
Reel Motor(kw)1.51.51.52.22.23.7
Power(V)3 Phase 220V/380V/50HZ
Operating Air(Mpa)0.490.490.490.49


Straigtening performance:

tock Thicknees (mm)Stock Width (mm)
0.3400500600800
0.4
0.6
0.8
1.0
1.2
1.4
1.6470470
1.8400400
2.0360360
2.3300300300300
2.5230230230230
2.8150150150150
3.2110110110110


*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
