| Categories | Outdoor Digital Signage |
|---|---|
| Brand Name: | GENEVISION |
| Model Number: | MAD-460 |
| Certification: | CE FCC ROHS |
| Place of Origin: | Guangdong, China (Mainland) |
| MOQ: | 1 |
| Price: | 1000-1500 USD / SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 set /month |
| Delivery Time: | 7-10 days |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing. |
| Keyword: | bus stop billboard |
| product name: | 46 inch outdoor lcd display |
| Contrast Ratio: | 3500:1 |
| Using life: | >60,000hrs |
| Brightness: | 2000cd/m2 |
| Application: | outdoor |
| Company Info. |
| Shenzhen MercedesTechnology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

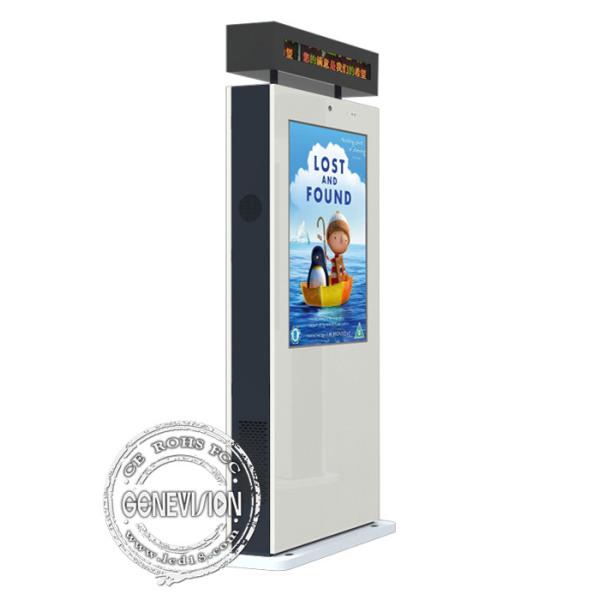

46 Inch Digital LCD Screen High Brightness Outdoor Advertising Screen
Product Function:
1. IP65 Outdoor enclosure, waterproof, anti-dust.
2.High brightness, 2000nits, resolution 1920 X1080i.
3. Ambient temperature -40 deg C to +55 deg C.
4.6mm AR bonding,TM glass,anti-glare and insulate 99.9% UV,prevent the panel damaged by UV under sunlight.
5. Intelligent air-conditioner, integrated cooling and heating.
6.Adopt patent thermal technology.
7. Ambient light sensor, auto dimming.
8. LCD will not turn black under direct sunlight with 24/7 hours working.
9. Customized design is acceptable. Size 26in-72in.
| Panel type | 46”LCD display screen |
| Active Display Area | 1018x573mm |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Resolution | 1920*1080 |
| Brightness | 1500cd/m2 |
| Contrast ratio | 3000:1 |
| Visible angel | 178°(H) / 178°(V) |
| Lifetime | 60000 hours |
| Port | VGA,hd mi(Optional) |
6mm AR toughened glass | 99.99% anti-ultraviolet |
| >50% of solar radiation | |
| >93% transmittance rate | |
| >3% Reflectance | |
| >50% solar heat insulation rate | |
EBM Centrifugal wind | Voltage 24V |
| Working voltage 20.4-27.6V | |
| Starting voltage 12V | |
| Average speed 2400rpm Minimum speed 2160 rpm | |
| Average current 0.26A Maximum current 0.312 | |
| Average power Accessed 3.12 Maximum 3.74 | |
| Average airflow 74 Minimum airflow 66.6 | |
| Average static pressure 2.0 Minimum static pressure 1.8 | |
| noise 33db | |
| Intelligent temperature control system | The fan speed can be automatically adjusted according to the operating temperature, with the heating function to meet the outdoor normal work of -40-55 degrees |
| shell | 1.5mm galvanized steel+Zinc base powder+outdoor powder |
| Photosensitive probe | Automatic Photosensitive Probe - Automatically recognizes the brightness of the surroundings by automatically adjusting the screen |
| Lightning protection device | Prevent lightning strikes |
| Time switch | Separable time setting timer switch |
| Touch Type | Nano touch |
| Touch way | finger |
| Touch effective recognition | 5mm |
| Touch accuracy | ±5mm |
| Touch points | 10 |
| First touching response time | 10 millisecond |
| Touches times | Any |
| Power input | AC 108-115V AC 208-240V |
| Fan power supply | 24V 480W or 600W |
| Screen display and backlight power supply | 24V+12V Hybrid power supply 200-400W |
| Work temperature | -20°C to +50°C |
| Storage temperature | -20°C to 60°C |
| Work humidity | 5% to 100% |
| Storage humidity | 5% to 100% |
| Installation | Floor standing |
| Dimension | 2100×860×220(mm) |
| Color | Black |
| Material | Mental |
| Panel Details | |
| Power Supply | Input:AC110-220V-50/60Hz |
| Resolution Ratio | 1920*1080 |
| Aspect Ratio | 16:9 |
| Color Components | 16.7M |
| Material | Metal and 3mm thickness tempered glass |
| Life of Panel | 60000Hours |
| Video Format | MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,H.264,MOV,WMV,RM,RMVB,etc. |
| Picture Format | JPG, BMP,PNG,etc. |
| OSD Language | English, Chinese, French, German, Italian,ect.. |
| Working Temperature | -7 to 60 Celsius degree |
| Android Configurantion | |
| CPU | Quad-core/Octa-core |
| RAM | 1G/2G/Custom-made |
| ROM(Internel Memory) | 8G/16G/32G/Custom-made |
| OS | Android 4.4 or above |
| PC Configurantion | |
| CPU | I3/I5/I7/Intel 1037U |
| RAM | 4G/8G |
| Hard Disk | 500GB HDD or 64/120/240GB SSD |
| OS | Window 7/10 |
| Functions | |
| Touch screen | optional |
| Card Reader | optional |
| Bluetooth | optional |
| Printer | optional |
| Camera | optional |
| More Functions can be customized according to buyer's need. Please contact with us for more information. | |
| Application | |
| Hotel/Shopping mall/Supermarket/Subway station/Store/hospital/Restaurant,etc | |
|
