2mm Sensing 12V-24VDC Rectangular Inductive Switch Waterproof PNP NO

Categories Inductive Proximity Sensor
Brand Name: F&C
Model Number: F3N-08DN02-P R2M
Certification: CE RoHS ISO
Place of Origin: China
MOQ: negotiable
Price: negotiable
Payment Terms: Western Union, T/T
Supply Ability: 10000Pcs Per Month
Delivery Time: 10days after depsite
Packaging Details: Standard export Package
Output Method: PNP NO / PNP NC/ NPN NO/ NPN NC
Hole Size: 2mm
Sensing Object: iron , steel
Operating Voltage: 12-24VDC+/-10%
Response Frequency: 800 HZ
Polarity Reverse Protection: Yes
Protection Grade: IP67
Operating Temperature: -25~70℃
Material: PBT/ABS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

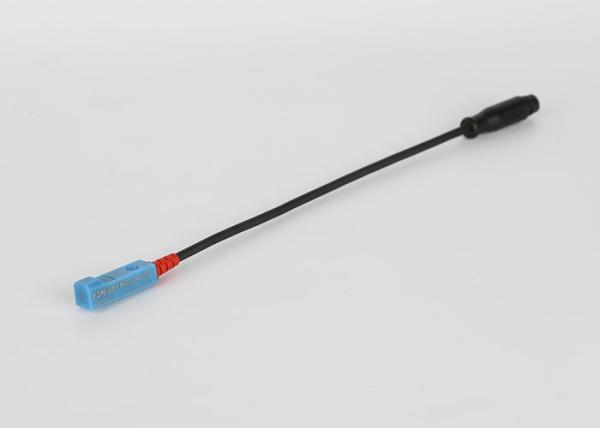

2mm Sensing 12V-24VDC Rectangular Inductive Switch Waterproof PNP NO

2mm Sensing 12V-24VDC Rectangular Inductive Switch Waterproof PNP NO

Features advantages for 2mm proximity sensor switch:


1. Low price, small space and easy to install.


2. Various modes for your choice.


3. Multi-functions like waterproof, oil-proof,dustproof and many other applications.


5. OEM order accepted.


6. Free sample available and 3 years warranty

Specifications for square proximity sensor:

ModelF3N-08DN02-P R2M
Induction wayVertical sensing 2mm
Maximum detection2mm
Standard sensing object8*8*1(iron)
Outputing WayNPN NO
Response Frenquencystandard 600Hz
Opearting voltage12-24VDC, 5V customizable
Loard current24V 100mA max
operating temperature-25 to +70 degree
MaterialABS
Protection degreeIP67
