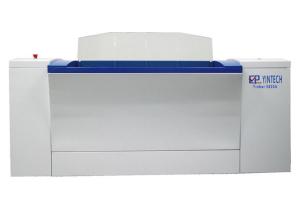

2400 DPI CTP Plate Making Machine Max Format 1160 * 940MM AC220-230V

Categories	CTP Plate Making Machine
Brand Name:	Yinber
Model Number:	8600A
Certification:	ISO9001~2000
Place of Origin:	China
MOQ:	1 set
Price:	$20,000~50,000 per set
Payment Terms:	L/C, T/T, D/P, D/A, Western Union, MoneyGram,installment
Supply Ability:	300 sets per Year
Delivery Time:	20-30 days
Packaging Details:	Export Wooden Case for sea shipping well support the forklift, 5.0 CBM/set , 6 sets /20 GP.
workflow software:	harlequin /prinergy
loading system:	semi-auto/automation
driver support:	1-bit Tiff interface and direct workflow driver,support cip3/cip4
Resolution:	2400 DPI
Power:	AC220-230V

Contact Now

Add to Cart

Company Info.

Shenzhen Yintech Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Thermal CTP(Semi-Auto)

Technical specification
Model	Thermal CTP
	Yinber 8300A	Yinber 8500A1	Yinber 8600A	Yinber 8900A	Yinber 8100A
No. of Lasers	32	48	64	96	128
Productivity (1130x800mm) (plates/h)	17	22	26	35	45
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source	830nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Semi-Automatic/Fully-automatic
Plates Gauge	0.15-0.4mm Thermal plates, suitable for different plates
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220-230V,50-60Hz 5.5KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2020mmx 1000mmx 930mm Weight: 1500kg			Size:1900mmx 1200mmx 1000mm Weight: 1000kg
Workflow software	HQ&PR

UV CTP(Semi-Auto)

Technical specification
Model	UV (thermal) CTCP
	Yinber 9300A	Yinber 9500A	Yinber 9600A	Yinber 9900A	Yinber 9100A
No. of Lasers	32	48	64	96	128
Productivity (1130x800mm) (plates/h)	17	22	26	35	45
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source	405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Semi-Automatic/fully-automatic loading
Plates Requirement	0.15-0.4mm UV plates, no brand requirement,suitable for various plates
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220-230V,50-60Hz 5.5KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2020mmx 1000mmx 930mm Weight: 1500kg			Size:1900mmx 1200mmx 1000mm Weight: 1000kg
Workflow software	Harlequin&Prinergy

Automatic CTP(Thermal VS UV)

Technical specification
Model	Thermal			UV
	Yinber 8300B	Yinber 8500B	Yinber 8600B	Yinber 9300B	Yinber 9500B	Yinber 9600B
No. of Lasers	32	48	64	32	48	64
Productivity (1130x800mm) (plates/hour)	17	24	29	17	24	29
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source	830nm			405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Automatic,Semi-Auto ( Auto-loader available)
Plates Requirement	0.15-0.4mm Thermal plates, no brandre quirement			0.15-0.4mm UV plates, no brand requirement
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software	HQ&PR

Large Format CTP(Thermal VS UV)

Technical specification
Model	Thermal				UV
	Yinber 2200		Yinber 2300		Yinber 2200U		Yinber 2300U
No. of Lasers	48		64		48		64
Productivity (1130x800mm) (plates/hour)	12	13	14	15	12	13	14	15
Max./Min. Format	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394
Laser Source	830nm				405nm
Resolution	2400 dpi
Loading System	Single plate, manual loading
Plates Requirement	0.15-0.4mm Thermal Plates				0.15-0.4mm UV Plates
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2880mmx1310mmx1310mm Weight: 2800kg
Workflow software	HQ&PR

FUCAI CTP Plate(Thermal VS UV PS Plate)

Technical specification
Products Type	(FP-100) Positive Thermal PS Plates	(FP-200) UV PS Plates
Runlength Rate	50,000~100,000 prints; >=100,000 after baking	>=100,000 prints
Thickness	0.27mm, 0.15mm	0.27mm, 0.15mm
Sensitive wavelength	830nm	405nm
Laser power	110~150mj/cm	50~70mj/cm
Resolution	1%~99%@200lpi	1%~99%@200lpi
Baking condition	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)
Safe lighting	2 hours under fluorescent lamp, 12 hours under yellow light	2 hours under fluorescent lamp, 12 hours under yellow light
Storage condition	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%
Shelf life	12 months	12 months
Developing time	20sec~30sec	20sec~30sec
Productivity	1800m2~2500m2	1800m2~2500m2
