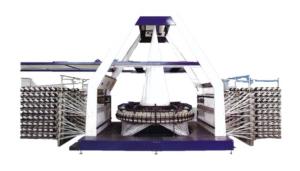

Shuttle Loom PP Woven Bag Production Line Customized High Stability

Categories PP Woven Bag Production Line
Model Number: YZJ
Certification: CE, ISO
Place of Origin: China
MOQ: 1 set
Price: Depends on different model
Payment Terms: L/C, T/T
Supply Ability: 4 sets / 90 days
Delivery Time: 90 days
Packaging Details: Without package or wooden
Shuttle Qty.: 8/10/12/14
Machine Type: Shuttle Loom
Voltage: Customized
Condition: New
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Shuttle Loom PP Woven Bag Production Line Customized High Stability

Born For PP And HDPE Flat Fabric Eight/Ten/Twelve/Fourteen High Quality Shuttle Circular Loom


Descriptions :


A new type of small cam driving mechanism to ensure the stability of the machine in long term operation and the reduction of electricity consumption. New rail ring and roller free shuttle, suitable for the high quality wide tubular or flat fabric by PP and HDPE, available for jumbo bag, geo textile, tarpuline and so on. The most advanced Weft Inspection system is set up to reduce the waste rate and improve the working efficiency. Automatic mainframe and hoisting synchronous control system to ensure smooth. Performance faster running, more stable performance, lower power consumption.


Main Technical Parameters
ModelYZJ-1700/8SYZJ-2200/8SYZJ-3200/10SYZJ-3400/12SYZJ-3400/14S
Shuttle Qty.88101214
Weaving Folding Width1100-17001700-23502500-32002700-34002700-3400
Max. Number Warp (pcs)960/19202560320033603360
Revolutions Of Main Motor (r/min)70-1108010-6010-5010-50
Capacity (m/min)1.4-2.21.4-1.61-1.51-1.51-1.75
Main Motor Power4/5.55.5/7.57.57.5/117.5/11
Total Power (kw)4.5/66/8.28.58.5/128.5/12
Installation Dimension (m)12x3x3.614x3.6x4.615x4.6x516x4.6x5.616x4.6x5.6
Weight (kg)42007000100001300013000
