Pallet shuttle racking system material SS400/Q235B Corrosion Protection

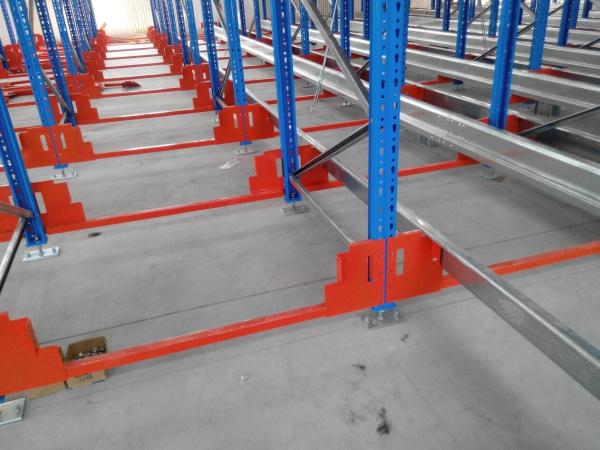

Pallet shuttle racking system

The Pallet Shuttle Racking is a high density intelligent storage system, which is made up of goods racking,shuttle cart, wireless remote control and forklift trucks. It has the following characteristics: high utilization rate,high efficiency and high safety factor. Shuttle racking work is received by the shuttle cart remote control instructions,in accordance with their own procedures for the completion of the warehousing, cargo sorting, inventory and other work. Compared to other types of shelving,radio shuttle racking greatly reduce the human, material and financial resources, to bring customers a new storage options!

The Pallet Shuttle follows orders sent by an operator using a tablet with Wi-Fi connection, depositing the load in the first free placement location in the channel and compacting the pallets as much as possible. By removing the need to drive forklifts into the lanes, storage capacity is increased in terms of depth, the risk of accidents and damage to the racks is negligible, operator movements are optimised and warehouse operation is modernised and made more flexible.

Shuttle Shelving is a great option for high density storage if you have large volumes of pallets. Lanes of up to 50 pallets in depth can be stored in both a First In, First Out (FIFO) and First In, Last Out (FILO) configuration. The remote-controlled shuttles carry goods in and out of deep storage tunnels, leaving your operators free to perform other tasks.

Specification of the radio shuttle cart:

Hereinafter data sheet is based on the size of pallet 1200mm

Product feature and application of the radio shuttle racking:

Radio Shuttle shelving is particularly well-suited to:

※ Storing of a large number of pallets.

※ Either FIFO or LIFO storage.

※ Warehouses with limited human resources, as the shuttle does a big portion of the work.

※ Ensuring efficient retrieval times, as the FLT travel distance is reduced.

Benefits

※ High density storage

※ Maintain accessibility

※ Increase productivity

※ Minimize damage

Application:

Food, beverage, chemical, tobacco and other single species, large quantities and relatively single item product.

Date critical cargo such as fruit and food can also be stored.

Our History

Qingdao Huichen Logistics Technology Co.,Ltd has focused on modern storage system equipment for over 20 years in China. as one of largest professional warehouse storage equipment manufacturer in north of China,which is focusing on the warehouse solution,manufacturing and installation.

Our Factory

The company has 2 automatic punching lines, 19 rack-making production lines,2 large shot blasting machines,4 flame plating lines, Annual production capacity of 10 million tons.

Our Product

Our main products cover :

1. all kinds of industrial racking: radio shuttle racking, selective racking,automated warehouse,

2. pallet,storage box;

3. section bar;

4. table trolley;

5. materials handling series equipment and so on.

We supply racking and material handling equipment all over the globe to a wide range of companies worldwide, ranging from large multinational organizations to small individual companies.

Product Application

Warehouse storage racking for Industry use are widely used in the following industry, such as:

--- Food,

--- Chemicals,

--- Auto,

--- Pharmaceutical

--- Electric products,etc...
