Bus PLC Cables And Connectors 90 Degree 6ES7 972-0BB70 0BA70

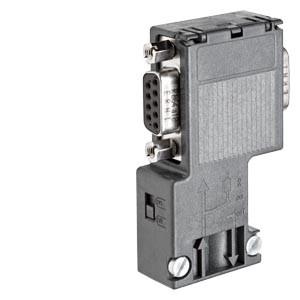

6ES7 972-0BB70 0BA70 PLC Cables And Connectors DP Connector 90 Degree

Overview

Used for connecting PROFIBUS nodes to the PROFIBUS bus cable
Easy installation
FastConnect plugs ensure extremely short assembly times due to their insulation-displacement technology
Integrated terminating resistors (not in the case of 6ES7 972-0BA30-0XA0)
Connectors with Sub-D socket permit PG connection without the additional installation of network nodes

Application

The RS485 bus connectors for PROFIBUS are used for connecting a PROFIBUS node or a PROFIBUS network component to the bus cable for PROFIBUS.

Specifications Of 6ES7972-0BB70-0XA0 Connector

Product
Article Number (Market Facing Number)	6ES7972-0BB70-0XA0
Product Description	SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, 15.8x 72.2x 36.4 mm (WxHxD), Insulation displacement method FastConnect, With PG receptacle
Product family	RS 485 bus connector
Product Lifecycle (PLM)	PM300:Active Product

Delivery information
Export Control Regulations	AL : N / ECCN : EAR99H
Standard lead time ex-works	1 Day/Days
Net Weight (kg)	0,051 Kg
Product Dimensions (W x L x H)	Not available
Packaging Dimension	7,00 x 7,80 x 3,00
Package size unit of measure	CM
Quantity Unit	1 Piece
Packaging Quantity	1
Additional Product Information
EAN	4025515080749
UPC	040892932782
Commodity Code	85366990
LKZ_FDB/ CatalogID	ST76
Product Group	4059
Country of origin	Germany
Compliance with the substance restrictions according to RoHS directive	Since: 01.03.2012
Product class	A: Standard product which is a stock item could be returned within the returns guidelines/period.
Obligation Category for taking back electrical and electronic equipment after use	No obligation to take back electrical and electronic equipment after use

Datasheet Of 6ES7972-0BB70-0XA0 Connector

Article number	6ES7972-0BA70-0XA0	6ES7972-0BB70-0XA0	6GK1500-0EA02	6GK1500-0FC10
Product type designation			PROFIBUS bus connector RS 485	PROFIBUS FC bus connector RS 485
Product description			Bus connector with axial cable outlet (180°)	Bus connector with axial cable outlet (180°)
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS			9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2	2
● for network components or terminal equipment	1	1	1	1
Type of electrical connection
● for PROFIBUS cables	integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Terminal blocks	Integrated insulation displacement contacts for 2-core PB FC installation cables
● for network components or terminal equipment	9-pin Sub-D connector	9-pin Sub-D connector	Sub-D connector (9-pin)	Sub-D connector (9-pin)
Type of electrical connection FastConnect	Yes	Yes	No	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
Material of the enclosure	plastic	plastic	metal	plastic
Locking mechanism design	Screw	Screw	Screw	Screw
Design, dimensions and weight
Type of cable outlet	90 degree cable outlet	90 degree cable outlet	180° cable outlet	180° cable outlet
Width	15.8 mm	15.8 mm	15 mm	16 mm
Height	72 mm	72 mm	57 mm	62 mm
Depth	36.4 mm	36.4 mm	39 mm	34.5 mm
Net weight	34 g	10 g	100 g	40 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	0 ... 60 °C	-40 ... +70 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
Relative humidity at 25 °C without condensation during operation maximum			75 %	75 %
Protection class IP	IP20	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes	Yes
Product component
● PG connection socket	No	Yes	No	No
● strain relief	Yes	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes	Yes
● UL approval	Yes	Yes	No	Yes
● cULus approval			No	Yes
● Railway application in accordance with EN 50155			No	No
Reference code
● acc. to DIN EN 81346-2	XF	XF
