| Categories | Cable Pulley Block |
|---|---|
| Brand Name: | Newart |
| Model Number: | QHS |
| Certification: | ISO,CCC,CE |
| Place of Origin: | Ningbo,China |
| MOQ: | 1pcs |
| Price: | Get Latest Price |
| Delivery Time: | 7-15days after Payment |
| Packaging Details: | Exported Box and carton |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000pcs per month |
| Applicable Industrial: | Construction works |
| Type: | Opening Hoistig block, Open,close,hook and ring type |
| Material: | Aluminum, Aluminum alloy with MC nylon wheel |
| Product Name: | Hoisting Block |
| Capacity: | 30-100KN |
| Max Rope Diameter: | Dia 11mm-18.5mm |
| Weight: | 6.3-18kg |
| Warranty: | 1 year |

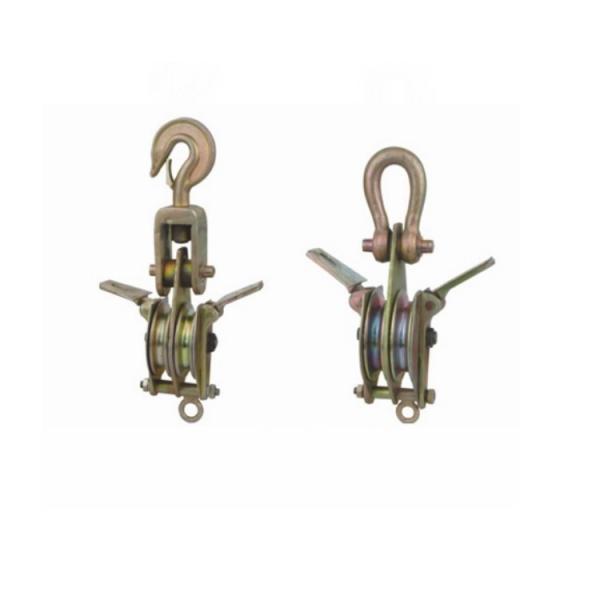

Both Side Opening With Dual-Sheave Stringing Block Equipment Aluminum Steel Hoisting Tackle
Application
Round Eye Type 5T Two Wheels Cable Pulling Hoisting Block Made of Steel
Our iron hoisting tackle is widely applicable to erection of overhead line structure, lifting equipment, and other hoisting devices. This product is classified as hook type G, ring style H, and clevis type B,Thus the style our customer needs should be clearly indicated in the contract when the order is palced.
Specification
| Item number | Model | Rated load (kN) | Roller Dia×width(MM) | Rope Diameter (mm) | Weight (kg) |
| 11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
| 11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
| 11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
| 11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
|
