| Categories | RCCB Circuit Breaker |
|---|---|
| Brand Name: | SEFIE |
| Model Number: | SFL1-63 |
| Certification: | CB,CE,ROHS |
| Place of Origin: | WenZhou,China |
| MOQ: | 2000-3000 |
| Price: | Negotiable |
| Supply Ability: | 200000pcs per month |
| Delivery Time: | 14 days after receipt of deposit |
| Packaging Details: | 240 pcs per carton,12pcs per box |
| Pole: | 2,4 |
| Material: | Bakelite ,Plastic |
| Protection class: | IP20 |
| Rated current: | 25,40,63 |
| Frequency: | 50/60Hz |
| Rated voltage: | 230/400 |
| Company Info. |
| Zhejiang Sefie Electric Co.,Ltd. |
| View Contact Details |
| Product List |

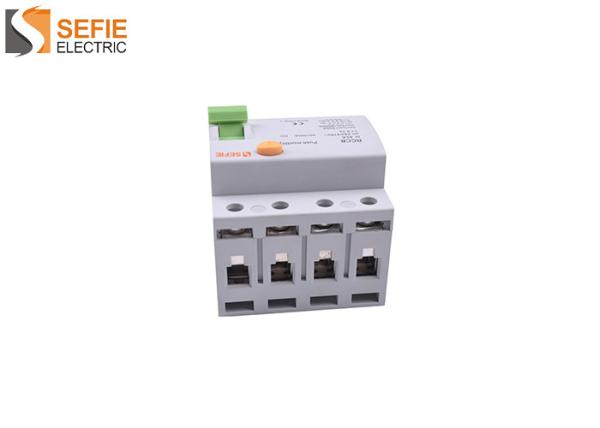

SFL1-63 16A 32A 40A 63A RCCB Residual Current Device Circuit Breaker RCD
type | In/A | I△n/A | Residual Current (I△)Is Corresponding To The Following Breaking Time | ||||
| I△n | 2I△n | 5I△n | 5A ,10A ,20A ,50A ,100A ,200A ,500A | ||||
general type | any value | any value | 0.3 | 0.15 | 0.04 | 0.04 | Max Break-time |
| S type | ≥25 | ＞0.03 | 0.5 | 0.2 | 0.15 | 0.15 | Max Break-time |
| 0.13 | 0.06 | 0.05 | 0.04 | Min non-driving time | |||
| G type | any value | any value | 0.5 | 0.2 | 0.15 | 0.15 | Max Break-time |
| 0.01 | 0.01 | 0.01 | 0.01 | Min Non-driving time | |||
| The general type RCBO whose current I△n is 0.03mA or less can use 0.25A instead of 5I△n | |||||||
| Type | Tripping current I△/A | ||
| AC | 0.5I△n＜I△＜I△n | ||
| A | Lagging Angle | I△n＞0.01A | I△n≤0.01A |
| 0 | 0.35I△n≤I△≤1.4I△n | 0.35I△n≤I△n≤2I△n | |
| 90 | 0.25I△n≤I△≤1.41I△n | 0.25I△n≤I△≤2I△n | |
| 135 | 0.11I△n≤I△≤1.4I△n | 0.11I△n≤I△≤2I△n | |
|
F360 1P + N / 3P + N 25 / 40 / 63 A Residual Current Circuit Breaker
40A Rcd Residual Current Device G Type 19mm Terminal Connetion Height
300mA 16A RCCB Circuit Breaker Screw Terminal 2 Pole Circuit Breaker
5A RCCB Circuit Breaker 400 Volt / 2 Pole Rcd Safety Switch IP20 Protection Class
2P 4P 230v Residual Current Operated Circuit Breaker Bakelite Material
6kA Rcbo RCCB Circuit Breaker / Dual Pole Rcd Electrical Safety Switch CE Approved
230v 10ma RCCB Circuit Breaker Double Pole Circuit Breaker CCC Certification
2p 25A RCCB Circuit Breaker Electrical Rcd Residual Current Device
10kA Rcb Electromagnetic Circuit Breaker / 4 Pole Circuit Breaker 50 /60 Hz
240V Residual Current Circuit Breaker RCCB / 2 Pole Circuit Breaker IP20
