| Categories | ELECTRIC TRANSFER PUMP SERIES |
|---|---|
| Brand Name: | YD |
| Model Number: | YDDPA-40A |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | NEGOTIABLE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000PCS/MONTHS |
| Delivery Time: | 3~30 DAYS ( DEPENDS ON QTY ) |
| Packaging Details: | 1PCS/CTN, PKG DIM. 40x35x31CM, EST.G.W. 13KG |
| MAT'L: | CAST IRON |
| POWER SUPPLY: | 12VDC OR 24VDC |
| FLOW RANGE: | 5~40LPM |
| PRODUCT: | DIESEL OR KEROSENE |
| Company Info. |
| ANHUI YUEDING MACHINE CO.,LTD. |
| View Contact Details |
| Product List |
YDDPA-40A 12VDC OR 24VDC battery diesel transfer pump assy is generally made up of
1. YDDP-40 12VDC or 24VDC oil pump ( none explosive type )
2. Mechanical fuel Flow meter YDPFM-1 ( 4 digits ).
3. Inlet hose
4. Outlet hose
5. Metal bracket.
It is easy for installation, quickly connected to fuel barrel, low operating cost, small size.
It is quite a practical choice for diesel/kerosene transfering.
Features
1. cast irom pump body finished with anti-corrosion pain
2. easy carrying and wide application in various excvavtors, land levellers, pavers, road rollers, etc.
3. flexible option for the pumps and meters, as well as the bracket
4. for diesel/kerosene transfer

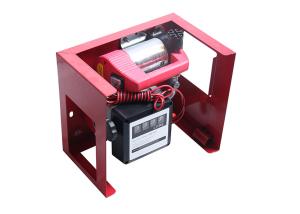

Real photo FYI
Technical Specifications
| Model | YDDPA-40A |
| Inlet&Outlet Size | 1" |
| Flowrate | 5-40 lpm |
| Power | 12v/24v |
| Application Media | kerosene, diesel |
| Temperature | -25℃-+55℃ |
| Accuray | ±1% |
| Sution/Lead | 3M/15M |
| Dimension | 40x35x31 cm |
| Package | 1 pc/ctn |
|
