Multi Function Air Machine Ozone Nano Bubble Generator

Categories Nano Bubble Generator
Brand Name: HOLLY
Model Number: HLYZ
Place of Origin: China
MOQ: 1Set
Price: USD 1500-6700
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 20 days after payment
Packaging Details: Wooden package
Product name: Multi Function Air Machine Ozone Nano Bubble Generator
Material: Stainless Steel or spraying coating steel
Application: fishing farming,wastewate treatment
Bubble size: 80nm - 20μm
Gas-liquid Mixing Proportion: 1:8-1:12
Gas-liquid Dissolving Rate: >95%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

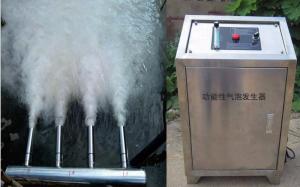

Multi Function Air Machine Ozone Nano Bubble Generator

Multi Function Air Machine Ozone Nano Bubble Generator


Introduction


Ozone wastewater treatment will have a nanoscale mix water and air, greatly improve the


water solubility from bottom to top.(water solubility is greater than 5 mg/L), the residence time


of nano bubbles in the water 100 times longer than ordinary bubbles, cover a broader, mixing,


achieve the goal of overall aerobic.


Advantage


1. Using high-pressure rotary flow transient release technology,high density of micro nano


bubble,non-clogging,easy to maintain.

2. Functional bubble diameter of 200 nm ~ 50μm , saturated water can be quickly produced


with good gas-liquid dissolving effect.

3. Stable performance, high efficiency, low noise.

4. Wide range of application,such as : waste water /gas treatment aquaculture,agricultural


irrigation,bath and so on.


Technical Parameters


HLYZ-001HLYZ-002HLYZ-006HLYZ-012
Water Inflow(m3/h)12612
Voltage(V)220/380220/380380380
Power(KW)0.51.136
Size(mm)660*530*800660*530*800850*550*850860*560*850
Working Environment(ºC)0-100ºC0-100ºC0-100ºC0-100ºC
Working Capacity( cubic water)9030012002200
Bubble Diameter(nm-μm)80nm-20μm80nm-20μm80nm-20μm80nm-20μm
Gas-liquid Mixing Proportion1:8-1:121:8-1:121:8-1:121:8-1:12
Gas-liquid Dissolving Rate>95%>95%>95%>95%
