| Categories | Diesel Power Generator Set |
|---|---|
| Brand Name: | SHX |
| Model Number: | SSF750 |
| Certification: | ISO9001:2015, CE, TUV, BV |
| Place of Origin: | Foshan, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 sets per month |
| Delivery Time: | 15 working days |
| Packaging Details: | Standard export packing |
| Product Name: | 750KVA Electric Generator |
| Color: | Black |
| Running Speed: | 1500RPM |
| Frequency: | 50Hz |
| Alternator Material: | 100% Copper Winding Wire |
| Engine Brand: | Shangchai |
| Alternator Brand: | Faraday |
| Control Panel: | Smartgen HGM6110N |

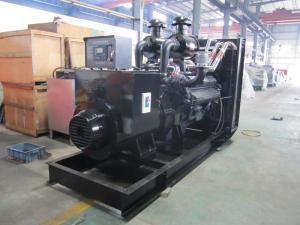

750KVA Diesel Generator Sets For 3 Phase Output Continuous Duty
Voltage
Genset Specifications:
| Genset model | SSF750 |
| Genset rated power | 600KW / 750KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1080 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4000×1650×2150 |
| Gross weight (kg) | 4500 |
Engine Specifications:
| Diesel Engine | |
| Brand | SHANGCHAI |
| Model | SC27G900D2 |
| Engine type | 12 cylinders in Vee, 4 stroke, direct injection |
| Aspiration | Turbocharged and air-to-air intercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 26.6 |
| Bore×Stroke(mm) | 135×155 |
| Noise level (dB) | 118 |
| 100% Load fuel consumption (l/h) | ≤142.6 |
| Lube capacity(L) | 65 |
Alternator Specifications:
| Alternator | |
| Brand | FARADAY |
| Model | FD6AS1-4 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Special Type Generator Set
1. Acoustic Enclosure Generator Set.
2. Containerized Generator Set.
3. Trailer-Mounted Generator Set.
4. Mobile Generator Set (Truck Mounted).
Control Panel:
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset has low oil pressure, high temperature, over speed, fail to start, charge fail, emergency stop, and over load protection function.
|
