| Categories | Elevator Encoder |
|---|---|
| Brand Name: | HENGXIANG |
| Model Number: | K100-C elevator encoder |
| Certification: | CE |
| Place of Origin: | Shanghai,China |
| MOQ: | 1pcs encoder to order |
| Price: | negotiable |
| Payment Terms: | D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc |
| Supply Ability: | 100K pieces per year |
| Delivery Time: | 3-5 working days for sample order, 7-15 working days for mass order |
| Packaging Details: | each 1 piece was packed into single carton box |
| Product name: | k100 elevator encoder |
| Shaft diameter: | 30mm/35mm/38mm/40mm/42mm/45mm |
| Thickness: | 38mm |
| Pulse: | 100ppr- 48000ppr |
| Intertia moment: | less than 100x 10-6kg.m2 |
| Optional supply voltage: | DC5V & DC8-30V |
| Load Voltage: | ≤DC30V |
| Shaft Material: | Radial 90N; Axial 60N |
| Protection grade: | IP50 |

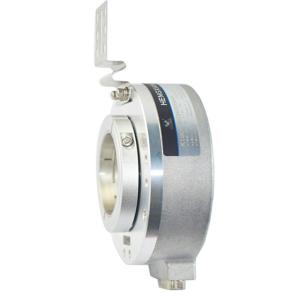

42mm elevator encoder outer dimension 100mm 48000 resolution axial endplay 0.1mm max
K100 encoder model number details
K100-C1N5000B445
K100-C2V5760B42
K100-C3F7200B40
K100-C4C8192B38
K100-C6E10000B30
K100-C4C20000BQ38
K100-C6E24000BQ35
K100-C2V40000BQ30
Why choose us?
HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;
Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;
OEM design accepted--customized design, your own brand accepted.
Product Information of K100 Series encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 100mm |
| Thickness | 38mm |
| Installation dimension | R50mm(spring plate 100T90) |
| Hollow shaft type | through hole (clamping ring at prior and clamping ring at rear) |
| Hollow shaft diameter | 30mm,35mm,38mm;40mm;42mm；45mm； |
| Resolution | 100;360;512;1000;1024;1200;2000;2048;2500;2880;3000;3600; 4096; 5000;5760;8192;10000；11520;12000;20000;24000;40000;48000; |
| 2048/6;2048/8;2048/10;2500/4;2500/6;2500/8;2500/16; 4096/4;4096/6;4096/8;4096/16;5000/6;5000/8;5000/10;5000/12; | |
| 8192/6;8192/8;/8192/10;10000/6;10000/8;10000/10;10000/16; | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Socket out from side |
| Output mode | NPN/PNP(Open Collector Output) |
| Voltage output | |
| Push-pull output | |
| line drive (26LS31) TTL | |
| line drive(DC8-30V) HTL | |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Allowable ripple | ≤3%rms |
| Load Voltage | ≤DC30V |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 98 x 10-3 N.m |
| Intertia moment | less than 120x 10-6kg.m2 |
| Shaft load | Radial 90N; Axial 60N |
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
