| Brand Name: | RAKINDA |
| Model Number: | LV3296 |
| Certification: | FCC,CE,Rosh |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 10000 pcs per month |
| Packaging Details: | 17*14*7cm |
| Name: | Barcode scanner reader |
| Type: | OEM Scan Engine |
| Symbologies: | 1D/2D |
| Reading Mode: | CMOS |
| Interface: | TTL232 |
| Wireless: | None |
| Category: | Compact Size, Excellent Performance |
| Dimensions: | 21.2(W)×14(D)×11.1(H)mm |
| Weight: | 4g |
| Operating Voltage: | 3.3 VDC±10% |
| Image Sensor: | 640×480 CMOS |
Ambient Light
The LV3296 oem barcode scanner module shows better performance with ambient light and it is well able to handle the flicker in fluorescent lights using 50-60Hz AC power. However, high-frequency pulsed light can result in performance degradation.
Eye Safety
The LV3296 mini barcode scan engine has no lasers. It uses LEDs to produce illumination and aiming beams. The LEDs are bright, but testing has been done to demonstrate that the engine is safe for its intended application under normal usage conditions. However, the user should avoid looking into the beam.
Mounting

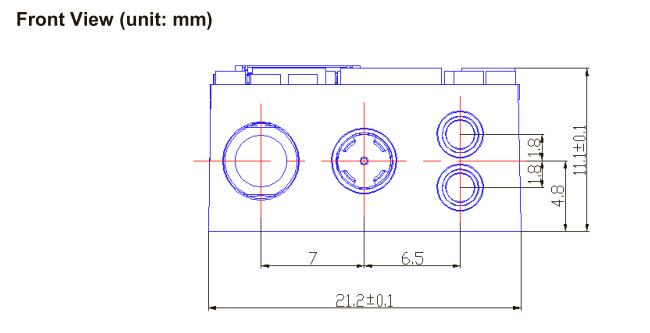

The illustrations below show the mechanical mounting dimensions for the LV3296 barcode scanner. The structural design should leave some space between components.
Power Supply
Do not power up the LV3296 2d barcode scanner module until it is properly connected. Be sure the power is cut off before connecting a cable to or disconnecting a cable from the host interface connector. Hot-plugging could damage the engine.
Unstable power supply or sharp voltage drops or unreasonably short interval between power-ons may lead to unstable performance of the engine. Do not resupply the power immediately after cutting it off. The minimum interval must exceed 2 seconds.
Technical Specifications of LV3296 2D Code Scanner Module
Performance | Image Sensor | 640 x 480 CMOS | ||
| Light Source | Red LED 625±10nm | |||
| Symbologies | 2D | PDF417, QR code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140) | ||
| 1D | Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1 DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand) | |||
| Resolution | ≥5mil | |||
| Typical Depth of Field | EAN-13 | 45mm-370mm(13mil) | ||
| PDF417 | 40mm-120mm (6.67mil) | |||
| Code 39 | 35mm-170mm (5mil) | |||
| Data Matrix | 30mm-120mm (10mil) | |||
| QR Code | 30mm-150mm (15mil) | |||
| Symbol Contrast | ≥30% reflectance difference | |||
| Scan Angle** | Pitch | ±50°@ 0°Roll and 0° Skew | ||
| Roll | 360°@ 0°Pitch and 0° Skew | |||
| Skew | ±60°@ 0°Roll and 0° Pitch | |||
| Field of view | Horizontal 44°, Vertical 33.2° | |||
Mechanical/Electrical | Interface | TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS) | ||
| Operating Voltage | 3.0~3.6VDC | |||
| Current@3.3VDC | Operating | 175mA | ||
| Standby | 8mA | |||
| Sleep | <5uA | |||
| Dimensions | 14(D)×21.2(W)×11.1(H)mm | |||
| Weight | 4g | |||
Environmental | Operating Temperature | -20℃~+50℃ (-4°F~122°F) | ||
| Storage Temperature | -40℃~+70℃(-40°F~158°F) | |||
| Humidity | 5%~95% (non-condensing) | |||
| Ambient Light | 0~100000lux (natural light) | |||
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be
sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld
Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID
Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data
of the Product.
Q6: Where can we download the SDK/user manual for some of your
products?
A6: SDK/User manual will be sent to you by email after the sample
order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner
module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be
added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact
us,we'll reply you in 24 hours.
|
