Bicheng FPC Flex PCB Prototype Flexible Circuit

Product profile

1.1 General description

This is a type of flexible printed circuit for the application of Controlled Access. It’s a 2 layer

FPC at 0.25mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class

2 using supplied Gerber data. Polyimide stiffner is applied on the inserting part.

1.2 Features and benifits

A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. Small quantity order is accepted
L. Engineering design prevents problems from occurring in pre production.

1.3 Application

Thin-film switch, Mobile phone module flex board, Mobile phone module flex board

1.4 Parameter and data sheet

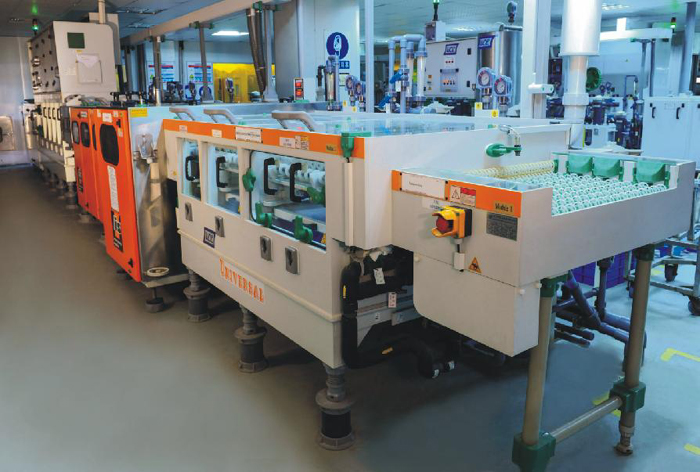

PCB Grinding Machine

Bicheng PCB is headquartered in Shenzhen, a city with great economic vitality. Based in China, we adhere to the philosophy of servicing small and medium sized companies offering variety of circuit boards to meet the demands of market.

We maintain the highest standards which support products that exhibit exceptional quality, performance and reliability. The circuit board ranges from conventional FR-4 to PTFE, metal core to flexible circuits which are used in the industries of home appliances, portable and consumable electronics, medical filed, aerospace as well as telecommunications etc.
