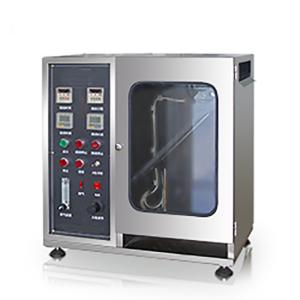

Resolution 0.01s Textile Flammability Testing Length 165mm Combustion Device

Scope of application:

A method for fabric in 45 ° state of damaged area and the damaged length determination;

B method used for textiles in 45 ° state when heat fused to a specified length in contact with the determination of the number of flame

Meet the standard:

In line with the GB/T14645-1993 "textile fabric combustion performance of 45 ° direction damaged area and contact number to determine.

Main features:

Combustion chamber, combustion device, timer, combustion system, assembly control system.

Main parameters:

The size of the box: 330mm deep x360 wide x360 wide x600mm, with the observation window, the top of the box and the side of the box are provided with a vent hole, and made of SUS304 stainless steel

Test clip: made of stainless steel

A method sample holder: two thick two. 0mm, length 490mm, width 230mm;

B normal sample support spiral: 0.5 hard stainless steel is made of 10mm diameter with a length of 150mm, and the wire is 2mm coil.

Power supply voltage and power: 220V plus or minus 10%, 50HZ, 100W;

Gas source: industrial-grade methane gas or other fuel gas

Gas source purity: 95%;

Igniter

Small igniter: diameter: 6.4 mm, length 165mm, flame height: 45mm;

Large igniter: internal diameter 20mm, length 160mm, flame height: 65mm;

Timing device: combustion timing, stop ignition timing, 99.99s

Resolution: 0.01s
