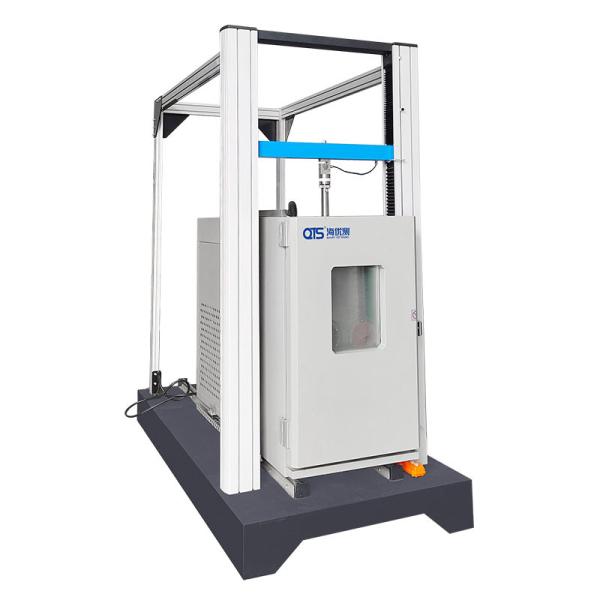

High And Low Temperature Tensile Test Machine With Programmable
Temperature tensile test machine.pdf
Product Description:
High And Low Temperature Tensile Test Machine is used to meet customer specified test requirements, which it can do tensile, tear test under specified temperature. This machine includes two parts: high & low temperature chamber and tensile tester.
Standard Features
| Tensile Tester | |
| Frame capacity | 2000kg |
| Load cell brand | Germany brand load cell for high accuracy |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1200mm including fixture |
| Test speed | 0.1~300mm/min (adjustable) |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Internal dimension(W*D*H) | 400*500*500mm |
| High & Low Temperature Chamber | |
| Temperature range | -40~+150℃ |
| Temperature Accuracy | ±1℃ |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel with paint spray |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
Rubber
Ø ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
Ø ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
Ø ASTM D624-00, ISO 34-1: Tearing strength Test
Ø ASTM D395-03, ISO 815-1: Compression Set Test
Ø ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
Ø ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
Ø ISO 2781(Method A): Density Test
Ø ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
Ø ASTM D1646: Mooney Viscometer
The Guarantee Period With FOC Within 1 year (not including expendable parts cost and transport & travel fees)
1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part (just for non-expendable part) caused by non-human reasons;
1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;
1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;
1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendable parts used in system operation, equipment maintenance;


|   |
