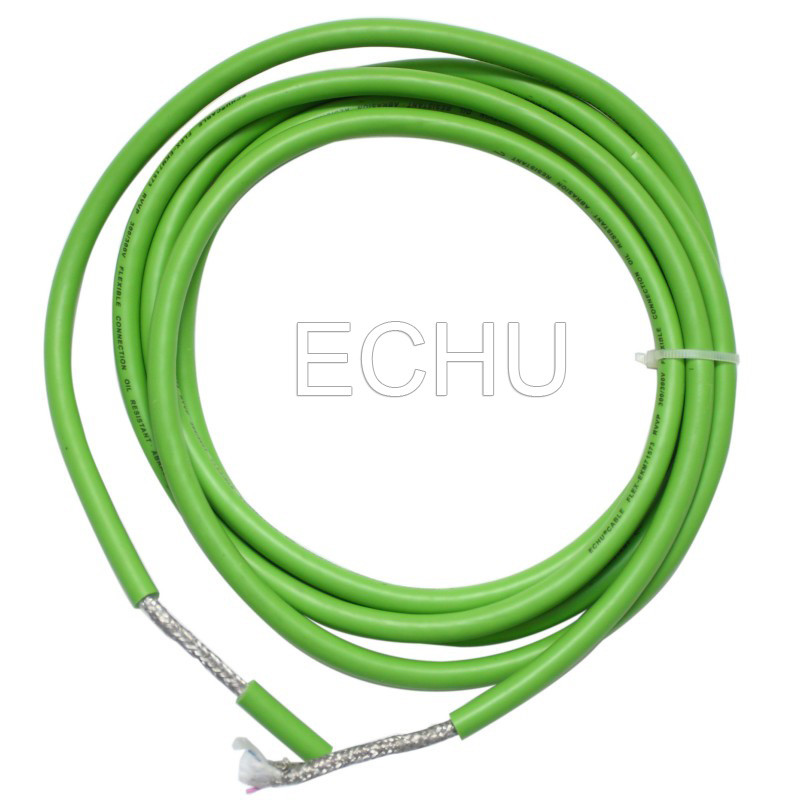

PUR control cable (Servo Motor cable) CNC cable

PUR control cable (Servo Motor cable) CNC cable

PUR control cable (Servo Motor cable) CNC cable
PUR control cable (Servo Motor cable) CNC cable
Categories Drag Chain Cable
Brand Name: ECHU / OEM
Model Number: Servo-CY Servo-CY -FD Servo-CY-FD-PUR
Certification: CE CCC UL
Place of Origin: China
MOQ: 300m
Price: USD0.88
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000000000KM
Delivery Time: 7 Working days
Packaging Details: ROLLS
Contact Now
Company Info.
Shanghai Echu Wire & Cable Co.,Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PUR control cable (Servo Motor cable) CNC cable


Conductor

tinned copper strands
Core isolation

TPE
Colour code

black cores with consecutive numbers + green/yellow earth wire
Wrapping

non-woven tape
Screen

tinned copper braiding
Inner sheath

PUR, black
Outer sheath

PUR, blackPeak operating voltage

max. 350 V
Testing voltage

cond./cond. 1500 V

cond./screen 1000 V
Temperature range

fixed laying: -50°C up to +90°C

flexible application: -40°C up to +90°C
Min. bending radius

flexing: 10 x outer diameter
Absence of harmful substances

acc. to RoHS directive of the European Union


TYPESPEC.
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x1.0+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x1.5+(2x0.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x1.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x2.5+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x4.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x6.0+(2x1.0))
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x10.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x16.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x25.0+(2x1.0)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x1.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x2.5+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x4.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x6.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x10.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x16.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x25.0+(2x0.75)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x1.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x2.5+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x4.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x6.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x10.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x16.0+(2x1.5)
SERVO-CY(RVVYP Motor Cable For Fixed Installation use)4x25.0+(2x1.5)
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x1.0+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x0.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x1.0)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x0.75)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x1.5)P
SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x1.0+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x0.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x1.0)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x0.75)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x1.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x2.5+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x4.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x6.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x10.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x16.0+(2x1.5)P
SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use)4x25.0+(2x1.5)P
