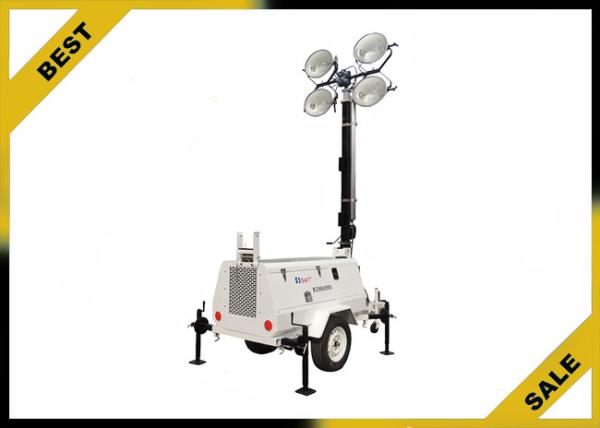

Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy

Categories Mobile Light Tower
Brand Name: Best
Model Number: BST-Z
Certification: CE ISO
Place of Origin: China
MOQ: 1
Price: Negotiating Prices
Delivery Time: 20
Packaging Details: WOODEN PACKING
Length: 4360mm
Width: 1430m
Loading container Height: 980KG
Full extending Height: 9M
Gross weight: 850KG
Model: D1105(Kubota)
Speed(rpm): 1500/1800
Number of cylinders: 3
Frequency (HZ): 50HZ
Alternator protection grade: IP23
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Diesel Powered Mobile Light Tower Length 4360mm 320° Mast Rotation Powder Coated Canopy

Telescopic Hydraulic Mast Mine Diesel Generator Mobile Light Tower


Key Features Include:

  • 9m hydraulically operated telescopic mast
  • 320 mast rotation
  • Available in 4x720W or 6x480W LED lamps
  • Galvanized mast and powder coated canopy
  • Electronic controlled hydraulic system with sustaining valves and hydraulic locks
  • Fault protection
  • Heavy duty, weather-protective enclosure
  • Fully bunded
Basic Model4TN60004TN1200
DimensionsLength4360mm (14’4’’)
Width1430 mm(4’8’’)
Height1450mm (4’9’’)
Full extending height9m (29’6”)
Gross weight980kg (2160lb)910kg (2010lb)
EngineEngine modelD1105 (KUBOTA)Z482(KUBOTA)
Speed(rpm)1500/18003000/3600
Number of cylinders32
Engine characters4 cycles,Watercooled diesel
Combustion SystemE-TVCS
Engine aspirationNaturally aspirated
Emission level(50/60Hz)Regular
AlternatorStandard configurationSPARKS
Frequency(Hz)50/60
Rating voltage (50/60Hz)230/240-120 VAC
Alternator insulationClass H
Alternator protection gradeIP23
Mast & LightsType of LightsDouble-end metal halideLED
Light’s fixtureOvalRectangle
Luminous flux165000 LM/light390000 LM/light
Number & power of lights4x1500W4x3000W
Number of mast sections3
Mast liftingManually
Mast extensionManually
Mast rotationManually,Max.330° lockable
Light tiltManually
TrailerTrailer suspension & axle with brakesLeaf springs & single axle without brake
Tow barRetractable & adjustable supporting wheel tow bar
Stabilizing legs & number4 pcs extendable bar with manually retractable jacks
Wheel’s rim size & tires14" rim with regular tires
Tow adapter2" or 50 mm ball adapter
Tail lightTail reflector
Max towing speed100km/h (62 mph)
Additional FeaturesFuel tank TypeRotational moulding plastic
Fuel tank capacity170 liters (45 US gallons)
Operating hours with full fuel80 hours360 hours
Wires & electric componentsRegular
Generator starting type or controlerKey starting
Max. against wind when fully extended20 m/s (45 mph)
Acoustic pressure72dB(A) at 7 meters away
Standard colourSWT orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs
Max. # of units loading in 40’ high container (Some components would be detached)12 or 14
Basic Model4TN4000
DimensionsLength4360mm (14’4’’)
Width1430 mm(4’8’’)
Height1450mm (4’9’’)
Full extending height9m (29’6”)
Gross weight960kg (2115lb)965kg (2125lb)
EngineEngine modelD1105 (KUBOTA)380D(LD)
Speed(rpm)1500/1800
Number of cylinders3
Engine characters4 cycles,Watercooled diesel
Combustion SystemE-TVSDirect injection
Engine aspirationNaturally aspirated
Emission level(50/60Hz)Regular
AlternatorStandard configurationSPARKS
Frequency(Hz)50/60
Rating voltage (50/60Hz)230/240-120 VAC
Alternator insulationClass H
Alternator protection gradeIP23
Mast & LightsType of LightsRegular metal halide
Light’s fixtureOval
Luminous flux110000 LM/light
Number & power of lights4x1000W
Number of mast sections3
Mast liftingManually
Mast extensionManually
Mast rotationManually,Max.330° lockable
Light tiltManually
TrailerTrailer suspension & axle with brakesLeaf springs & single axle without brake
Tow barRetractable & adjustable supporting wheel tow bar
Stabilizing legs & number4 pcs extendable bar with manually retractable jacks
Wheel’s rim size & tires14" rim with regular tires
Tow adapter2" or 50 mm ball adapter
Tail lightTail reflector
Max towing speed100km/h (62 mph)
Additional FeaturesFuel tank TypeRotational moulding plastic
Fuel tank capacity170 liters (45 US gallons)
Operating hours with full fuel120 hours
Wires & electric componentsRegular
Generator starting type or controlerKey starting
Max. against wind when fully extended20 m/s (45 mph)
Acoustic pressure72dB(A) at 7 meters away
Standard colourSWT orange or yellow canopy, black chasis, galvanized masts, tow bar & stabilizing legs
Max. # of units loading in 40’ high container (Some components would be detached)12 or 14

FAQ


Q: What certificate do you have for the Mobile Light Tower ?

A: CE certificate for the whole machine. The major parts like LED lamp, batteries and solar panels have CE and UL certificate.

Q: How many countries have the Mobile Light Tower been exported to?

A: Australia (BHP company), Canada, USA, Mexico, UK, Denmark, New Zealand, India, Brazil, Chile, South Korea, Indonesia, the Philippines, UAE, Saudi Arabia, Ghana, South Africa, Cameroom, Sudan, Egypt, Israel, etc.

Q: How to become our agent?

A: As long as you have the marketing resources and the capacity to do after-sale service, contact us for further


details by sending us an inquiry.
