| Brand Name: | Elite Tree |
| Model Number: | ET450NP01 |
| Certification: | ISO9001:2015 / ISO14001 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100Kpcs~ per month |
| Delivery Time: | 5days for sample and 20-25 days for mass production |
| Packaging Details: | In anti-statics bag packed in carton or according to the customer's requirement |
| Display Type: | TFT LCD Screen 4.5 Inch 540*RGB*960 |
| Viewing Direction: | All |
| Driver IC: | OTM1285 |
| Brightness: | 350cd/m2 |
| Panel Model: | AT090TN12V3 |
| Company Info. |
| Elite Tree Technology |
| Verified Supplier |
| View Contact Details |
| Product List |
TFT 4.5 Inch 540 * 960 Resolution TFT LCD Screen With 350cd/m2 Brightness IPS↵
TFT LCD Screen
Product Information
| Display Type | 4.5'' TFT LCD Screen |
| Resolution | 540 * 960 |
| Outline Dimension | 59.61mm * 108.30mm * 1.60mm |
| Active area | 55.49mm * 96.64mm |
| Interface | RGB |
| Viewing Direction | All |
LED backlight color | White LED |
| Power supply(typ) | 3.3V |
Operating temp | -20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| Brightness | 350cd/m2 |
| If accept customized | Yes |
| RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers,
Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

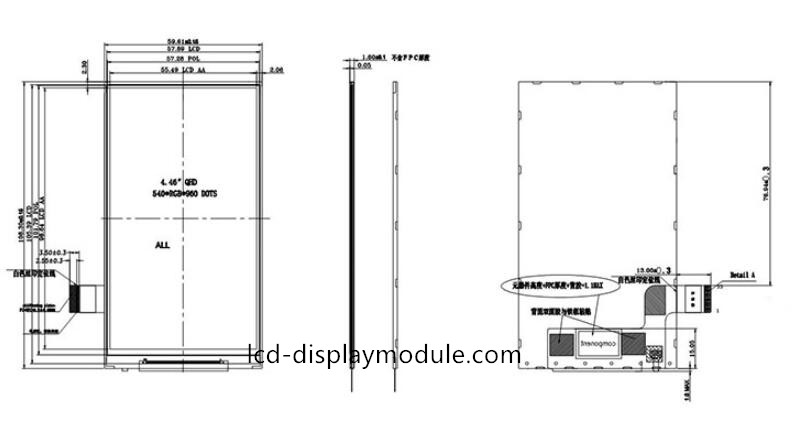

Product Drawing

|
