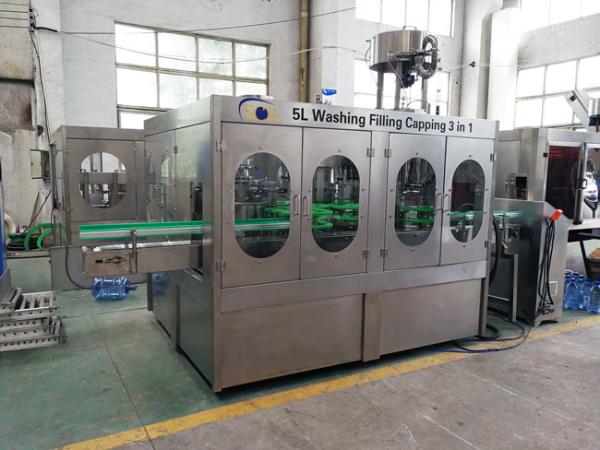

Rotary Type Automatic Bottle Filling Machine No Leakage 1000 BPH 5L Capacity

1.5KW 1000BPH 5L bottled water filling machine

Description:

• The 3-in-1 automatic equipment is used for the production of wine, alcohol drink,mineral water, pure water, juice, etc.
• It integrates washing ,filling ,capping together.The design is scientific and reasonable ,It's oppearance is beautiful ,operation and maintentic is convenient.
• CGF series rotary type automatic 3 in 1 monoblock washing filling capping machine is mainly composed of washer, filler, capper, cap unscrambling system, bottle input/output conveying system and electric control system, frame, sealing windows, etc. It is used to fill bottled drinking water, such as purified water, mineral water, etc.

Quick Detail:

Specifications:

Points:

1. Washing machine mainly contains adjustable supporter, shunt circle, water channel discreteness, overturn guide track, gripper etc.

2. Filling machine is mainly composed of filling tank components, filling tank elevator, cam elevator, axletree components, transmission Components, filling valves and so on. It plays a role in filling product into bottles. All parts connected with product are stainless steel and special material. It is accordance with the requirement of food sanitation.

3. Capping machine is composed of capping machine base, transition gear device, capping device, base, transmission upright post, rotating-prevent upright post, and cap elevator device etc.

The transmission system of the capping machine is from the reductor. Through gear, the power is transferred to capping head by elevator upright post, transitive gear is simultaneously driven to rotate the cap-taking plate.

Suzhou Mingstar Co.,Ltd is a professional company focus on filling machine and packing machine business. Suzhou Mingstar will be responsible with exporting and logistic business. there is professional factory StepChina Machinery which focus on desigining and manufacture.

Founded in 2006, Suzhou StepChina Machinery Co.,Ltd, is a leading manufacturer and supplier of beverage filling line, filling machine in China, with the registered capital of 5 million RMB. We are committed to improving the standard of our products to fulfill the growing various solution for packaging and drink industry over the past few years.

Here in Stepchina, we mainly offer bottled beverage production lines and other related machines as follows:

1. The water filling line which can harvest mineral or pure water both in bottled or barrel packed. There are CGF bottled water filling production line for 200ml-2500ml and TXG barrel water filling line for 3~5 gallon.Those lines are suitable for producing potable drinking water for you.

2. The juice production line which can harvest potable drinking beverage from apple, sour cherry, pomegranate and orange grape, pineapple, tomato, mango and blends etc. This line is suitable for PET bottled juice within the volume from 200ml to 2500ml.

3. The carbonated drink production line is used to produce carbonated drink or spark drink like Coca Cola, Sprite, Pepsi Cola and other soft drink with the capacity from 200ml to 2500ml and with production capacity varies from 6000-30000B/H.
