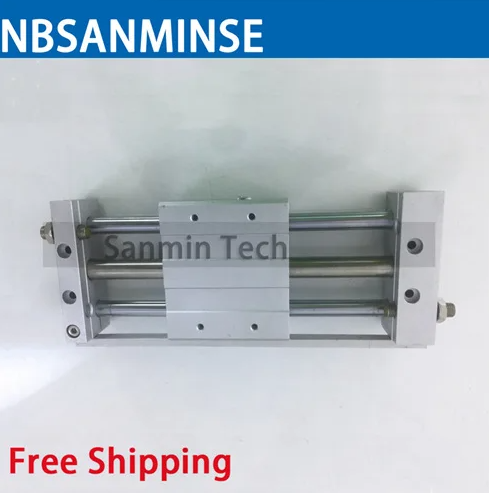

CY1L Magnetically Coupled Rodless Cylinder Slider Type Ball Bushing Bearing Pneumatic Cylinder
Specifications
| Bore Size ( mm ) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Fluid | Air | |||||||
| Proof Pressure | 1.05MPa | |||||||
| Max pressure | 0.7MPa | |||||||
| Min pressure | 0.18MPa | |||||||
| Ambient and fluid temperature | -10 to 60 ℃ | |||||||
| Piston speed | 50 to 500 mm/s | |||||||
| Cushion | Rubber Bumper / Shock absorber | |||||||
| Lubrication | Not required ( Non – lube ) | |||||||
| Holding Force ( N ) | Type H | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 |
| Type L | - | - | 81.4 | 154 | 221 | 358 | 569 | |
| Standard equipment | Auto switch mounting rail | |||||||
Standard Stroke
| Bore Size (mm) | Standard stroke ( mm ) | Maximum available stroke (mm) |
| 6 | 50 , 100 , 150 , 200 | 300 |
| 10 | 50 , 100 , 150 , 200 , 250 , 300 | 500 |
| 15 | 50 , 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 | 750 |
| 20 | 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 | 1000 |
| 25 | 1500 | |
| 32 | ||
| 40 | 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 , 900 , 1000 | 1500 |
