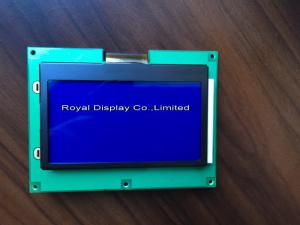

COG Graphic LCD Module STN Blue RYG12864A 128*64 dots , 3.3V Power supply

COG Graphic LCD Module STN Blue RYG12864A 128*64 dots , 3.3V Power supply

1. COG Graphic LCD Module
2. Dots Format , 128x64
3. Controller , ST7567 OR EQUIV
4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
5. LED Back Light , White , Red , Amber .
6. Widely Use On Hand-held Device .

7. CN1	SYMBOL	CN2	SYMBOL
   1~2	+5V	1	GND
   3~6	S01~S04	2	S14
   7	A0	3	S13
   8	SCK	4	S12
   9	SDA	5	S11
   10	BL
   11	/CS
   12	/RST
   13~14	GND




Royal Display Co.Ltd, specializing in the design, development and production of LCD display module full scheme for more than 10years.

Our company's products include two series: standard and custom-made products, related to: Segment LCD display, Character LCD display, Graphic LCD display, COG LCD display, TFT color display, OLED display, 7 segment LED display, covers TN, HTN, STN, FSTN, TFT and other film types, fusion of COG, TAB, COB, SMT and other process with the capability of 300K different kinds of LCM/LCD per month.

Our advantages are:1. High quality guarantee. 2. Superior After-Sale service. 3. The most competitive prices here can provide. 4. Small order quantity accepted. 5. Offer 12 months of warranty. 6. Experienced staff can help you to solve your problem anytime.
With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
