| Categories | Single Mode WDM |
|---|---|
| Brand Name: | Geehe or OEM |
| Model Number: | WDM Single Mode |
| Certification: | ROHS, REACH, UL, ISO |
| Place of Origin: | Wuhan, China |
| MOQ: | 10 PCS |
| Price: | Price Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300,000pcs per month |
| Delivery Time: | 7-10 days |
| Packaging Details: | Blister box and carton |

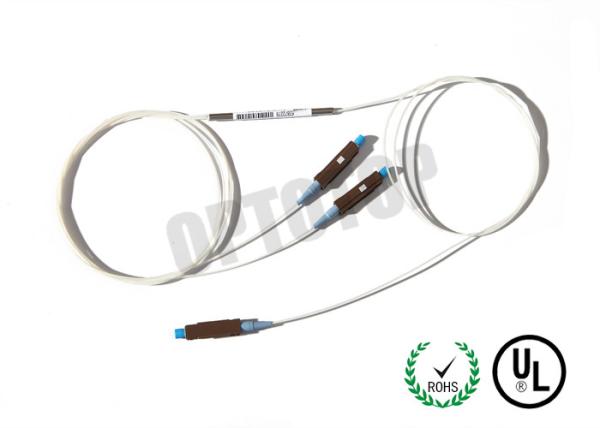

| Configuration: | 1x2 |
| Fiber Material: | Single Mode |
| Operating Wavelength: | 1060&1550nm |
| Connector: | MU/UPC |
| Fiber Type: | 0.9mm |
| Fiber Length: | 0.5m |
EX: WDM-P-12-65-1-09-MU-B
Key Features
Low excess loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
Mini sizes
Applications
Long-haul Telecommunications
CATV
FTTH
Local Area Network
Description
WDM is the technology to separate different wavelengths of light at the receving end in optical signal transmission.
Ordering Information
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X |
| … | 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: SMF-28e 02:HI1060flex, 03: OFS BF05635-02 | 1: 1 meter x: on request | 25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable | SC:SC/UPC SA:SC/APC .00:no connect | A: A B: B C:C | |
| Grade | Operation Wavelength | Fiber type | Fiber length | Pigtail type | Connect Type | Dimension |
EX: WDM-P-12-65-1-09-MU-B
Specifications
| Parameter | 980/1550nm WDM or 1060/1550nm WDM | 1310/1550nm WDM | 1480/1550nm WDM | ||||||
| Fiber Type(dB) | Corning HI1060flex OR OFS BF05635-02 | SMF-28e | |||||||
| Operating wavelength (nm) | 980 & 1550 | 1060&1550 | 1310&1550 | 1480&1550 | |||||
| Operating bandwidth (nm) | ± 10/20 | ±15 | |||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL (dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | 0.1 | |
| Directivity (dB) | ≥55 | ||||||||
| Operating temperature (℃) | -40 ~ +85 | ||||||||
* The above specification is without connector * Other specifications can be made on customer request.
Ordering Information
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X |
| … | 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: SMF-28e 02:HI1060flex, 03: OFS BF05635-02 | 1: 1 meter x: on request | 25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable | SC:SC/UPC SA:SC/APC .00:no connect | A: A B: B C:C | |
| Grade | Operation Wavelength | Fiber type | Fiber length | Pigtail type | Connect Type | Dimension |
EX: WDM-P-12-95-1-25-00-A
|
