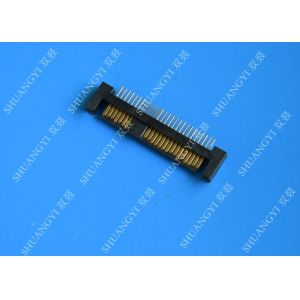

Printed Circuit Board PCB Wire to Board IDC Type Connector 22 Pin Jst 2.5 mm

Printed Circuit Board PCB Wire to Board IDC Type Connector 22 Pin Jst 2.5 mm

Current Rating: 5.0AMP
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000mΩ Min
Withstand Voltange: 1000V AC/Minute
Operation Temperature: -25º C to +85º C
Contact Material: Brass
Contact plating: Sn over Ni
Insulator Material: Polyester(UL94V-0)
Standard: PA66 or PA46

Company Introduction：

Our company is a connector manufacturer integrating R&D, production and sales. Our main products include high-speed PCIE4.0/5.0 series SATA connectors, USB2.0, USB3.0 series, Micro-B, Micro-B waterproof series, SIM card TF card series, Type-C, Type-C waterproof series, HDMI series, wire-to-board series, SATA series, shortcut terminals, SATA wiring harness, computer peripheral cables, server internal wiring, HDMI and USB3.0, TYPE-C wiring harness, new energy vehicle charging guns, adapters and Cables and so on! Products are widely used in computers, communications, automobiles, medical and electrical equipment.

We have our own independent production plant and independent laboratory; the factory covers an area of 25,000 square meters, the production workshop area is 40,000 square meters, and we have more than 800 employees. It has complete mold development and processing equipment (including Seibu wire cutting, Japanese WAIDA optical grinding, Mitsubishi spark machines, Taiwan high-speed CNC, Yuqing precision grinders, etc.); it has production equipment: 40 high-speed precision punches, 45 imported precision injection molding machines machines, 120 automatic assembly machines and self-developed connector and cable assembly machines. With the strong support of these equipment, the company's monthly production capacity can reach 2 million cables, 30 million connectors, and stamping and injection molding OEM parts processing with an output value of more than 800,000. The current main customers include Foxconn, Dell, Asus, Amphenol, Amphenol FCI, BYD, Tyco, DELL, IBM, MOLEX、LUXSHARE, MGE, Lenovo, WIESON, Chunghsin, Emdoor etc. etc.

Since its establishment, the company has taken “high starting point, high efficiency, high quality, high requirements” as its corporate purpose. All decisions are based on quality and operate in strict accordance with the IS09001 quality control system and ISO14001 environmental certification system. In line with the corporate philosophy of “customer first, honest service, and sustainable operation”, the company relies on excellent quality and strong pre-sales and after-sales services, based on a wide range of domestic and foreign markets, and has established good cooperative relationships with domestic and foreign customers. This enables the company to develop rapidly and steadily.
