| Categories | Sliding Gate Motor |
|---|---|
| Brand Name: | WONSUN |
| Model Number: | WSTP=-102 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | negotiation |
| Payment Terms: | T/T,Western Union,Money Gram, Trade Assurance,Paypal etc., |
| Delivery Time: | 3-7 working days after received your payment |
| Packaging Details: | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Power supply range: | AC220V/110V±10% 50/60Hz |
| Max loading weight: | 1500kg |
| Open(close) speed: | v=12m/min |
| Working temperature of motor: | -25 to +55 Celsius degree |
| Product name: | 1800KGS Sliding Gate Motor Heavy Duty Remote Control Slide Gate Opener |
| Rated power: | 200w |
| Supply Ability: | 1000 Sets/Month |
| Company Info. |
| Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

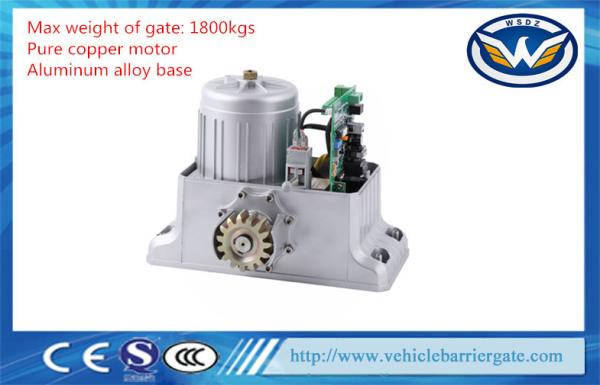

1800KGS Sliding Gate Motor Heavy Duty Remote Control Slide Gate Opener
Technical Parameters:
| 1 | Power | AC220C±10V 50/60HZ |
| 2 | Motor speed | 55rpm 66rpm |
| 3 | Operating Temperature | -20°C~+50°C |
| 4 | Relative Humidity | ≤95%, No Condensation |
| 5 | Rated output power of motor | 200W |
| 6 | Remote control operating distance | 30m (Frequency433.92mHz) |
| 7 | Remote control mode | Single button |
| 8 | Max gate weight | 1800Kg |
| 9 | Output torque | 16Nm |
| 10 | Limit switch | Spring limit switch |
| 11 | Noise | ≤58dB |
| 12 | Duty cycle | S2, 15 minutes |
| 13 | extra remote control | 20 pcs |
| 14 | Gate move speed | 12m/min |
| 15 | Application | home automation |
Functions& Features:
1. Max gate weight 1800kg
2.New design of spring limit switch downward
3.Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4.Mcu is supplied to control the gate operator
5.Keypad/single button interface
6.Photo beam safety beam interface
7.User can select Auto-close function
8.Manual key release design for emergency purposes
Our service:
1. Any email will be checked in 5 minutes, any inquiry will be
replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price,
fast lead time.
4. After-Sale Service:
|
Automatic 1800Kg Remote Control Sliding Door Motor For Sliding Gate
