| Categories | Reverse Circulation Hammer |
|---|---|
| Brand Name: | ROSCHEN |
| Model Number: | 4" 4.5" 5" |
| Certification: | ISO |
| Place of Origin: | Germany |
| MOQ: | 1 set |
| Supply Ability: | 100 sets |
| Packaging Details: | Polywood box |
| Price: | Negotiate |
| Name: | Reverse Circulation Hammer |
| Model: | RE035, RE004, RE040, RE540, RE542, RE543 RC Hammer |
| Model No.: | RE545, RE052, RE054, RE547, RE140 RC Hammer |
| Item: | Secoroc RC 50 Hammer |
| Item No.: | Secoroc RC 45 Hammer |
| Drill: | Reverse Circulation drilling |
| Bits: | Reverse Circulation bits |
| Tools: | Reverse Circulation hammer bits |
| Aplication: | Quarry drilling, coal mining, RC drilling |
| Projects: | Golden Drilling |
| Company Info. |
| ROSCHEN GROUP |
| Verified Supplier |
| View Contact Details |
| Product List |

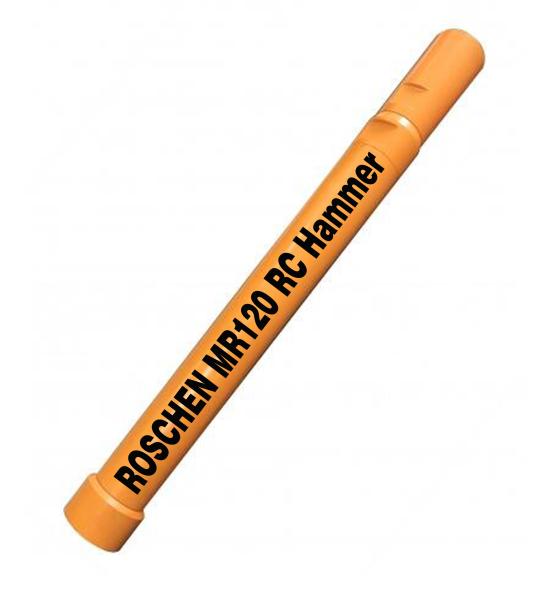

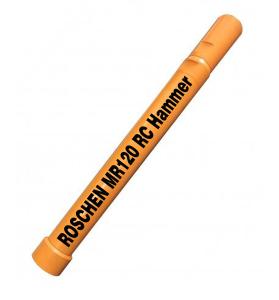

Reverse Circulation Drilling Hammers 4" with 127mm RC Button bits
Shroud
Roschen Reverse Circulation Hammer quality can be replaced of by Halco, atlas copco basis on the quality grade, and in the after sales
service.
Roschen offers a complete line of Reverse Circulation hammers and spare parts, we are not only a leading manufacturer in the industry, which can compete Mincon and Halco, Atlas Copco, but also, we have a professional after service exterprise. Hammers are available in a wide range of sizes and styles, to provide maximum performance and longevity on all RC drilling jobs.
Reverse Circulation hammers are designed with an inner sample tube
that extends through the center and into the top of the hammer bit.
The RC hammer exhausts the air between the bit splines and over the
face of the bit. This forces the sample into the recovery holes in
the face of the bit, through the center of the hammer and upward
through the drill rod inner tubes to the surface for collection.
The use of a shroud or collar is required when a RC hammer is used,
to help direct the return air and cuttings up through the face of
the bit.
Conventional DTH hammers can also be used in RC drilling
operations, but increase the potential for sample loss and
contamination. A conventional DTH hammer is used in conjunction
with a cross-over sub located between the hammer and drill rod. The
sample travels from the face of the bit up the outside of the
hammer and into the cross-over sub.
The sub directs the sample up the center of the dual wall rods and
to the surface.
Halco RC Hammer:
| Reverse Circulation RC HAMMER QUICK REFERENCE | ROSCHEN RC Hammer | ||
| Part No. | Specifications | Model | ROS Model |
| 600405 | RC400 Remet 4" | HALCO RC 400 | ROS RC 40 |
| 600407 | RC400 Metzke 4" | HALCO RC 400 | ROS RC 40 |
| 600415 | RC400 Metzke 4.5" | HALCO RC 400 | ROS RC 45 |
| 600409 | RC500 Remet 4.5" | HALCO RC 500 | ROS RC 50 |
| 600410 | RC500 Metzke 4.5" | HALCO RC 500 | ROS RC 50 |
Halco RC Hammer:
| Reverse Circulation RC HAMMER QUICK REFERENCE | ROSCHEN RC Hammer | |
| Size | Model | ROS Model |
| 3" | RC Hammer RE035 | ROS RC 35 |
| 4-4 1/2" | RC Hammer RE004 | ROS RC 40 |
| RC Hammer RE540 | ROS RC 45 | |
| 5" | RC Hammer RE040 | ROS RC 50 |
| RC Hammer RE542 | ROS RC 50 | |
| RC Hammer RE543 | ROS RC 50 | |
| RC Hammer RE545 | ROS RC 50 | |
| 5-5 1/2" | RC Hammer RE052 | ROS RC 55 |
| RC Hammer RE547 | ROS RC 55 | |
| 5 1/2-5 3/4" | RC Hammer RE054 | ROS RC 55 |
| RC Hammer RE140 | ROS RC 55 | |
| ROSCHEN RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
