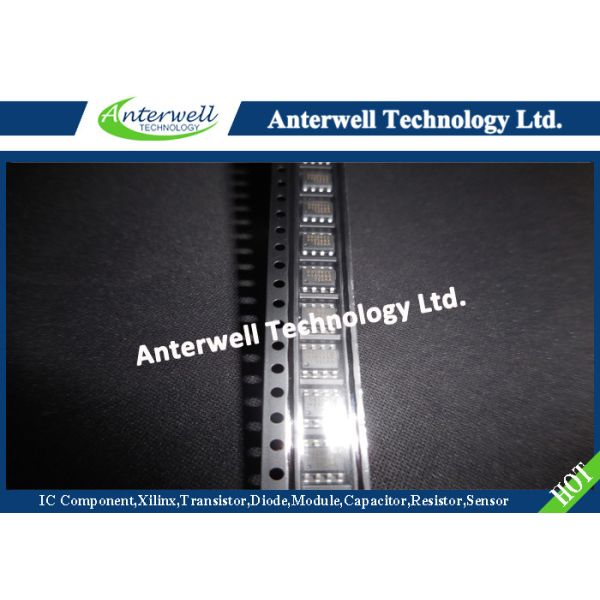

64 x 8 Integrated Circuit Chip Serial I2C Real-Time Clock DS1307ZN

DS1307

64 x 8, Serial, I2 C Real-Time Clock

GENERAL DESCRIPTION

The DS1307 serial real-time clock (RTC) is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I2 C, bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24- hour or 12-hour format with AM/PM indicator. The DS1307 has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply. Timekeeping operation continues while the part operates from the backup supply.

FEATURES ƒ

♦Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year Compensation Valid Up to 2100 ƒ

♦56-Byte, Battery-Backed, Nonvolatile (NV) RAM for Data Storage ƒ

♦I 2 C Serial Interface ƒ

♦Programmable Square-Wave Output Signal ƒ

♦Automatic Power-Fail Detect and Switch Circuitry ƒ

♦Consumes Less than 500nA in BatteryBackup Mode with Oscillator Running ƒ

♦Optional Industrial Temperature Range: -40°C to +85°C ƒ

♦Available in 8-Pin Plastic DIP or SO ƒ

♦Underwriters Laboratory (UL) Recognized

ABSOLUTE MAXIMUM RATINGS

Voltage Range on Any Pin Relative to Ground……….……………………….…………....-0.5V to +7.0V Operating Temperature Range (Noncondensing) Commercial………………………..0°C to +70°C Industrial………………………………………………………………………………-40°C to +85°C Storage Temperature Range………………………………………...…………..…………-55°C to +125°C Soldering Temperature (DIP, leads)..…………………………………………….....+260°C for 10 seconds Soldering Temperature (surface mount)…..…………………………See JPC/JEDEC Standard J-STD-020
