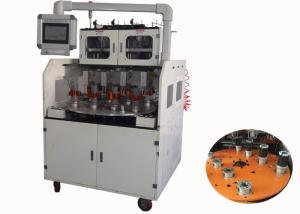

With four winding heads and 8 stations, the machine winds coils directly and orderly into transfer cup, which is controlled by six servo motors. It is especially suitable for the coil inserting of stator with high slot fill factor and small slot opening width.

1. A kind of four-head and eight-stations automatic winding machine;
2. automatic put the coil into transfer orderly;
3. especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable.

Main Technical Data

Application of stator coil winding machine

This Automatic Eight Working Station Induction Motor Stator Coil Winding machine is suitable for 2 poles. 4 poles, 6 poles motor stator coils winding.

Machine main function and characteristic

This automatic induction motor stator coil winding machine has four winding heads and eight operation stations. High efficiency is its feature. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; Parameter could be set in human-machine interface.
Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.

SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. We,Suzhou Smart Motor Equipment Manufacturing Co., Ltd. has two main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature ,stator production, and the motor assembly line, The second division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

Our Machine Production Process,Our motor stator production line is widely used in the manufacturing of many kinds of motor stators. This stator production line includes several machines, such as paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, and forming machine. Each machine in this stator production line is stand-alone, meanwhile, it can also be connected with conveyor.
