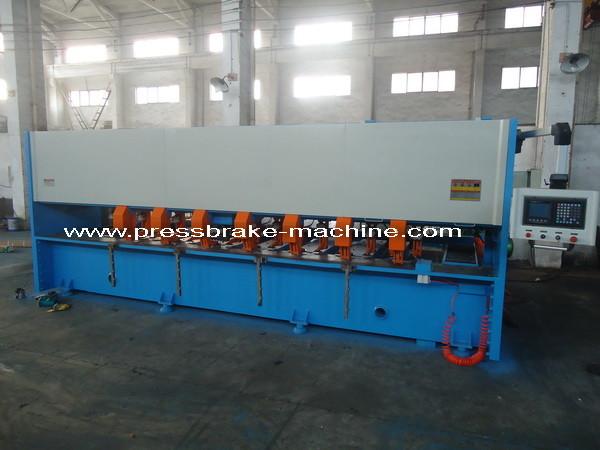

Pneumatic Sheet CNC V Grooving Machine CNC Slotting Machine 1.23m Feeding Deivce

Pneumatic Sheet CNC Slotting Machine V Grooving 1.23m Feeding Deivce

4mm sheet V grooving machine, V groover,V cutting machine,CNC plate V grooving machine

Specifications

CNC sheet metal V grooving machine use Q235 material welded frame structure, vibration to eliminate the welding stress. good rigidity and stability

high-speed cutting groove.

Model: VBK-1230x3200

Max. cutting thicness:4mm. Max. cutting width: 1230mm

Electrical system with CE certificate(Sheinder, Germany)

Motor with CE (SEW, Germany)

Pneumatic system with CE ( AIRTAC, Germany)

welcome to contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039

Feature

• Whole machine body welded by steel plates with high strength and small deformation.
• Full CNC automatic working
• Automatic clamping and loosening
• Blade moving meanwhile sheet works stay in its place,so save space
• Quick changing of blades
• Three sets blades working together to save time
• Knock-down front support arms for long work pieces
• Servo motor to ensure high precision
• Less noise and high performance

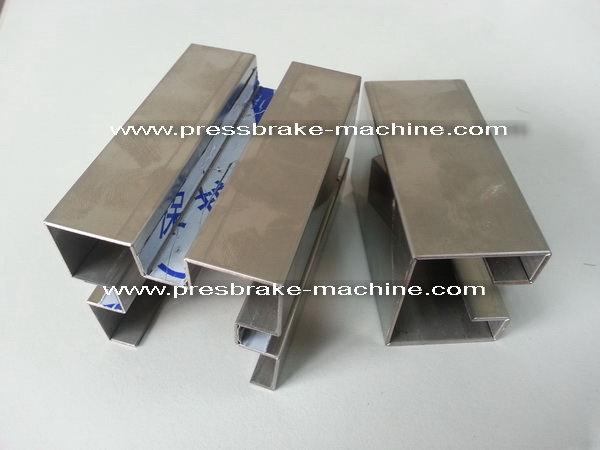

Workpiece Sample

Packing And Shipping

1. the machien adopt iron pallet with plastic cover to pack after the machine is

running and testing for 48 hours.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport

Shipping Documents

• Operation Manual(hydraulic diagram,electro diagram)
• backing plate
• footswitch
• alloy blade
• high speed steel
• allen wrench
• feeler block
• oil gun
• Packing list
• Colors: According to Customer's requirements

After Sales Service

1. Our guarantee time is 5 years from B/L date. If any component is damaged

during guarantee time, we can send the component to the customer

by DHL, TNT freely.

2. Our factory can send our engineer to the customer’s factory install,

commission and training freely. The customer provide the double trip tickets,

food and accommodation for our engineer.

The customer also can send the engineer to our factory to learn the operation

and maintains freely.

3. Our factory provide the service for the customer forever, if the customer need

operation help, can contact us by MSN, Skype, Email and Telephone at any time,

we provide 24 hours on-line service.

WUXI JINQIU MACHINERY CO.,LTD was founded in June 1969. it is located in No.99Qianluo road

Qianqiao town Huishan district Wuxi city. It is at Wuxi Vocation park. It mainly produces hydraulic press brake,

hydraulic shear, CNC sheet V grooving machine, allotype surface quick forming machine, CNC hydraulic turret

punching machine and other series products. It is one of the backbone enterprises in the domestic forging

industry with 40 years’ history.

The company covers an area of 62000 square meters with over 50000 square meters construction area.

It have advanced production equipments with imported large CNC gantry milling machine, imported large

CNC boring and milling machine, 100T carriageway and a series of iconic devices.

Company’s excellent design team can make personalized products according to the user’s demands which

to maximize customer value and optimize customer cost performance. Meanwhile, the company have always

stood in the forefront of technological innovation, continued to explore the “JQ”brand products widely and deeply,

and also attached great importance to the research cooperation. it has established long-term cooperative relations

with Jiangnan university, Nanjing university of Aeronautics and Astronautics, Jiangsu university, and also has set up

long-term stable cooperative relationship with the word’s leading multinational companies. Our hydraulic press brake

and shear machine have formed serialization

To met the customer’s different requirements.

Especially since 2002, the company has continued to increase investment in science and technology, our innovation

ability improves yearly through research staff’s innovation and hard work. We has received dozens of national invention

patents and utility model patents, won the provincial high tech enterprise in 2007, and obtained the innovation and reward

fund support from the national ministry of science and technology in 2011.

The company always adhere to quality system has access to the export product quality permit ISO 9000 international quality

system certification CE certification.

We sincerely hope to establish a close cooperation with domestic and foreign customers.

old factory area was founded since 1969 years that produced the hydraluic plate press brake mchine and hydraulic

sheet shearing machine

workshop view at old factory

we moved into new factory in 2008 years to process the CNC draulic press brake,CNC tandem press brake machine,

hydraulic shearing machine, CNC sheet V grooing machine,hydraulic iron worker, 3 roller plate rolling machine

and hydraulic press

machine body of plate press brake &shearing machine process workshop

parts machining workshop for hydraulic bending machine, hydraulic guillotine shear, sheet V groover

CNC press brake machines assembling workshop

workshop for producing the hydraluic sheet cutting machine

workshop use to assemble the CNC sheet V grooving machine

workshop use to assemble the heay press brake machine,light pole bending machine and CNC hydruilc tandem press brake

warehouse use to store the hydraulic swing beam shear and hydraulic guillotine shear

storeshouse use to store theNC press brake and CNC press brkae machine

our company hold the signing ceremony of sales tanks in second half of the year with all sales men on 2019. 6 30.

16x6300 shearing machine export to Vietnam
