P10 Rgb Large Video LED Stage Curtain Screen Wall Lifespan >100000 Hours

Categories Indoor LED Displays
Brand Name: Jinhe
Model Number: P10
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1 square meter
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 2,000 square meters per month
Delivery Time: 15 working days after receiving deposit
Packaging Details: Packed in road cases
Lifespan: >100000hours
Pixel pitch: 10mm
Pixel compose: 1R1G1B 3in1
Module Size: 320 * 160
Brightness: >2000nits
Color: Full color
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

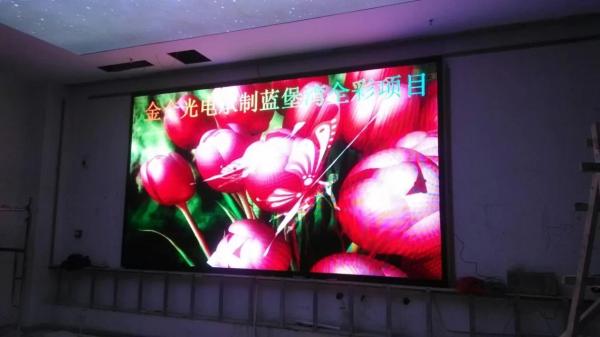

P10 Rgb Large Video LED Stage Curtain Screen Wall Lifespan >100000 Hours

P10 Rgb Large Video LED Stage Curtain Screen Wall Lifespan >100000 Hours


Specifications:
1. 2 years warranty
2. Good consistency
3. Excellent visual effect
4. Good quality match good price
5. CE, ROHS


.Part No.P10 LED DISPLAY Screen
2.LED chipTaiwan Epistar /Silan/Cree/Cree Cotco
3.Physical Pixel Pitch10mm
4.Physical Pixel Density10000dots/m2
5.Pixel composition1Red, 1Green,1Blue
6.Moduel Size320mm*160mm
7.Moduel resolution16*16dots
8.Cabinet thickness< 170 mm
9.Bracket of cabinetEasy to install onto the LED cabinet and unistall .
10.Brightness≥ 2000 nits
11.Colors16.7million
12.Viewing angleHorizontal ≥120°, Vertical : ≥ 45°
13.Viewing distance10m -300m
14.Soft Rubber MaskTo protect player and LED display itself .
15.Scan frequency

≥600 Hz

There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct

16.Video Frame Rate≥150 fps
17.Color temperature6500°K to 9500°K adjustable
18.Control methodControlled by PC, synchronous display
19.Life span( half brightness)≥100,000 hours
20.Weight70Kg /sqm
21.IP rateIP65 ( front side and rear side)
22.Average power consumption400W/sqm
23.Peak power consumption1300W/sqm
24.Input voltageAC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.Operating EnvironmentTemperature:-20+60 Humidity:10%95%RH
26.Operating systemWindows 98/2000/ME/XP
27.Type of video signalS-video, composite video ,RGB ,VGA ,DVI

Application and Market

1.Application

Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc

2.Market:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe


Product advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps
3) Service advantage: Better service at same situation, better cooperation at same service

Trade Terms:
1) Payment: T/T ,ususally 40% prepayment before production, 60% balance to be paid before delivering,it also change according to total quantity
2) Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3) Sample can be deliveried within 3days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1 sqm/1pcs

Our service:
1) Your inquiry related to our products or prices will be replied in 24hrs.
2) Well-trained and experienced staffs to answer all your enquires in fluent English .
3) OEM&ODM, any your customized screen we can help you to design and put into product.
4) Distributer ship are offered for your unique design and some our current models .
5) Protection of your sales area, ideas of design and all your private information
