Rfid Card Tripod Turnstile Gate With Counter For Visitor Magement System

Rfid Card Tripod Turnstile Gate With Counter For Visitor Magement System

Tripod Turnstile Gate With Counter Specifications:

Turnstile accessories:

● Turnstile Mechanism (semi-auto)
● Turnstile housing (304# Stainless steel at 1.5MM)
● Turnstile Control Board
● Turnstile Supply
● Turnstile Traffic Indicator(double direction)
● Turnstile Passage Status Lights

Counter Technical Parameters:

(1) containing the down counting, reversible counting, identifiable phase counting (raster table) three- count mode;

(2) Input signal: switch, level pulse (low level: -30V ~ + 0.8V, high level: + 4V ~ + 30V);

(3) external sensors: proximity switches, Hall switches, photoelectric switches, encoders, etc;

(4) The instrument external to the sensor for DC12V / 50mA DC power supply;

(5) You can set the magnification to determine the ratio between the count and the display magnification range: 0.0001 to 9999;

(6) can be preset count value, the count value can be reset by a reset button or reset terminal;

(7) The current count value, counting function parameters, target control value set by a count-down is not lost;

(8) have low counts of high-speed counter options, at a low speed counting mode provides filtering software;

(9) The built-in three-way relay alarm output, up to 12 alarm control relay output can meet the control requirements;

(10) RS485 communication, Modbus-RTU protocol can be directly interconnected with the PLC, HMI, industrial configuration software;

(11) 6 .56 inches highlighted in red LED display;

Communication with customers:

1 - Does the turnstile come with a RS485 PC software?

The turnstile itself doesn’t come with a RS485 PC software,you need purchase the RS485 door access

control and card reader.But we suggest you purchase TCP/IP door access control and card

reader.Because it doesn’t need converter,and use internet cable it can directly communicate with a

computer.Compare with RS485 door access control,It is more convenient and transfer speed much faster.

2- Can I communicate the turnstile direct with a PC?

No,you can’t communicate the turnstile directly with a pc,because the main board just out put low level

signal,but pc can not receive low level signal,so the turnstile must connect a door access control then can

connect with a pc.

3 - They come with the complete command manual (if we want to develop our own software)?

For normal passage control,we have compete command manual for you.,Many clients from different

countries use our software,don’t need second develop.If your company has the ability to develop your

own software, we can provide SDK to you.

4- can I use just one access control control 2 pcs turnstile?

You can use one one access control for double doors to control 2pcs turnstile,but the 2 turnstiles must be

very close,because if the distant is far,first,it will not convenient to set up the cable,second the single will

be less then can influence the whole facility.So,for 2 doors,we suggest you use 2 access control.

Applications:

The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms,

clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and

other high level venues, ect.

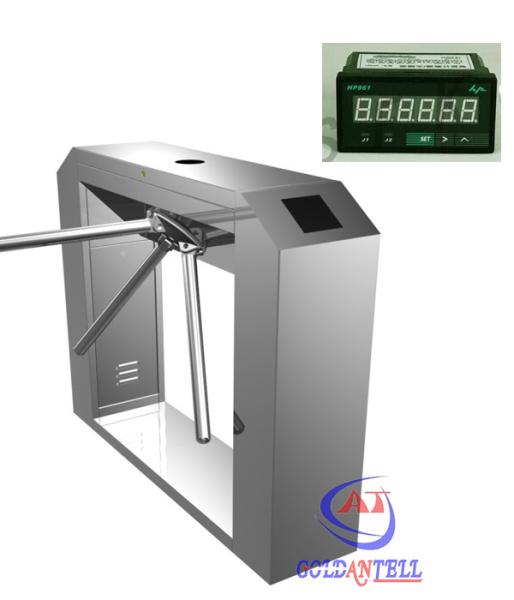

Tripod Turnstile Gate With Counter Picture:
